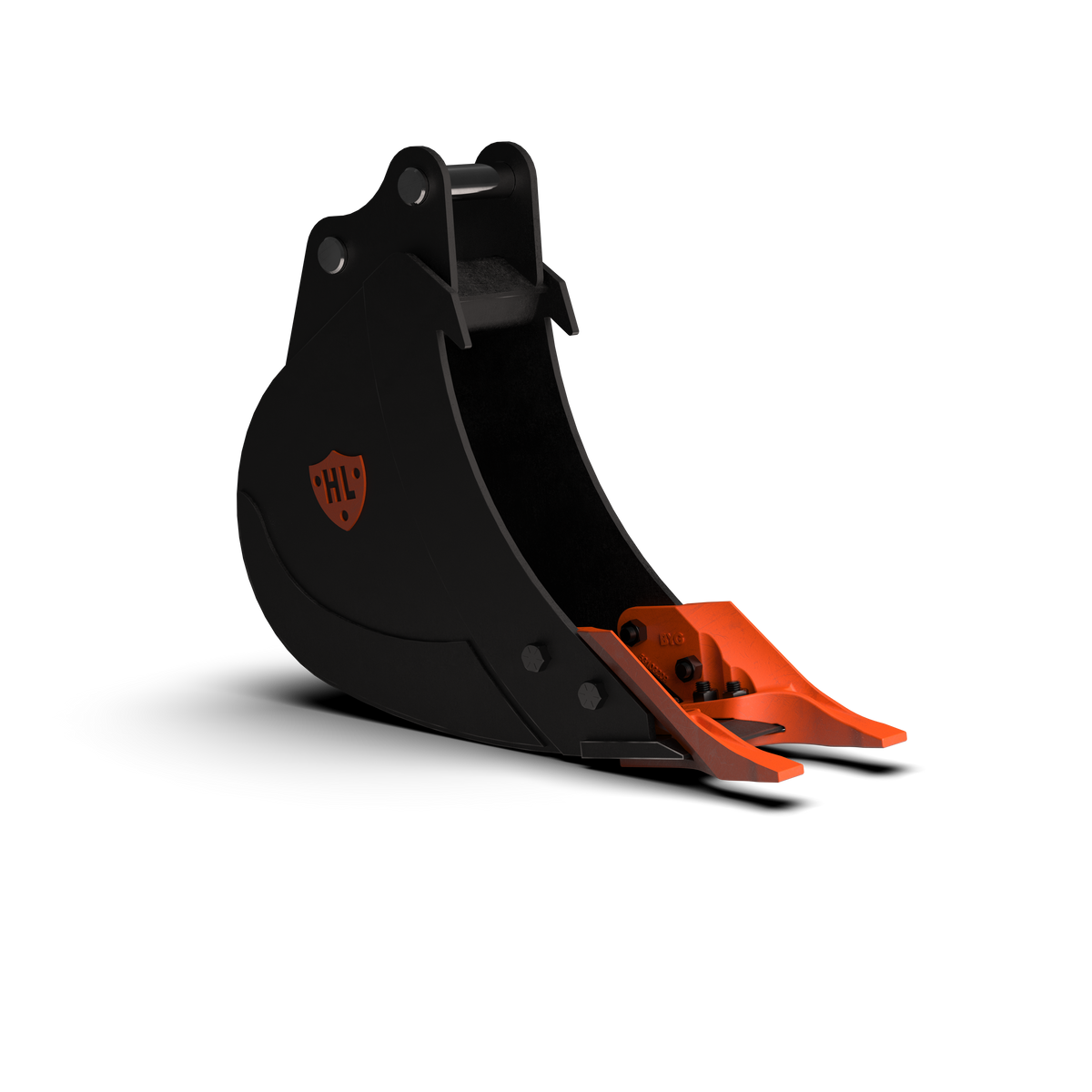

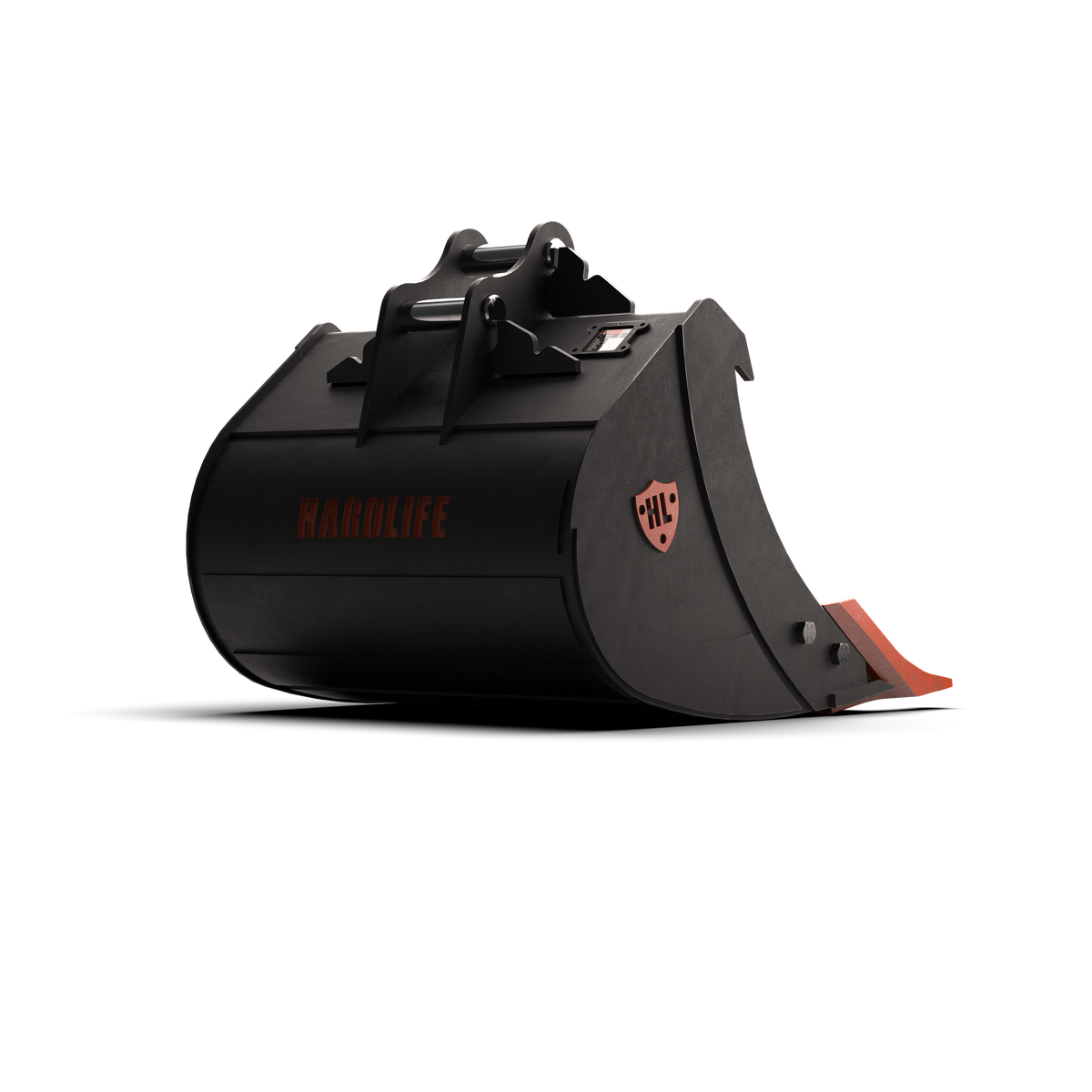

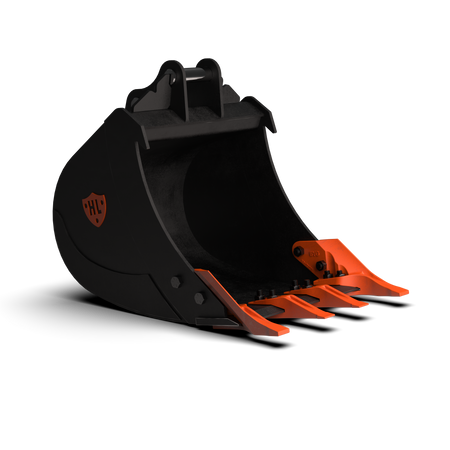

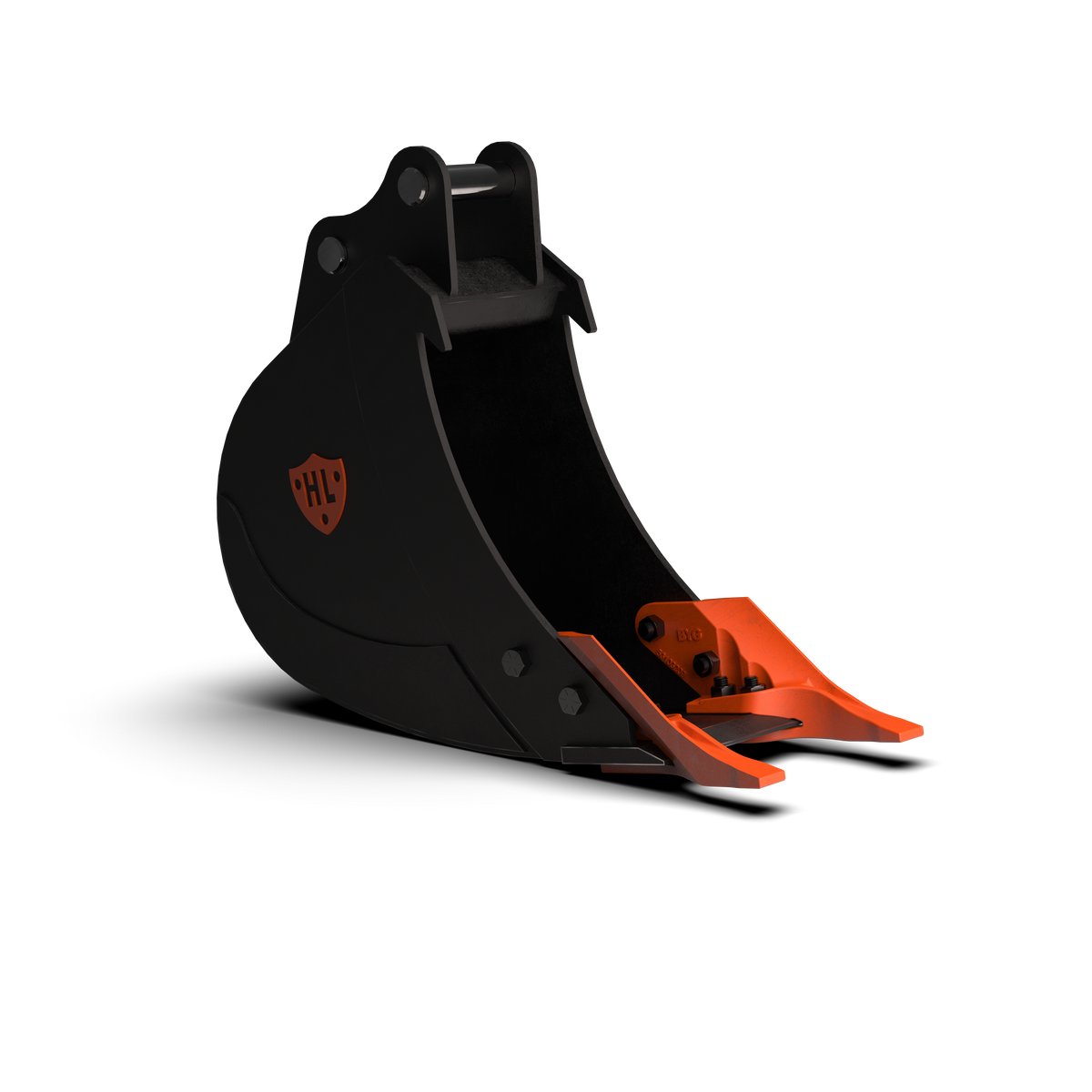

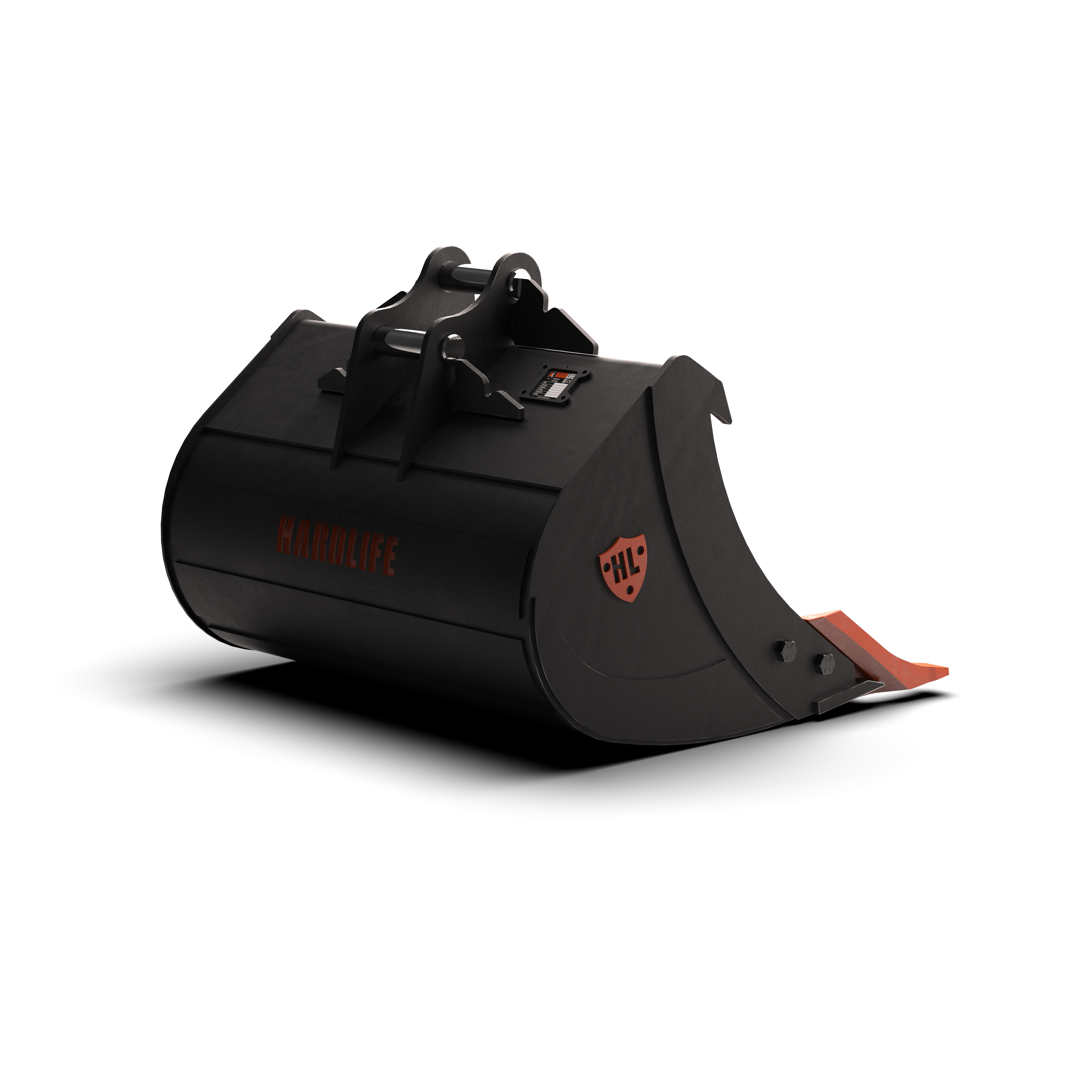

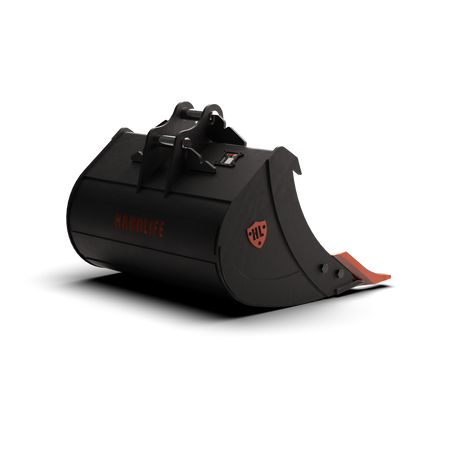

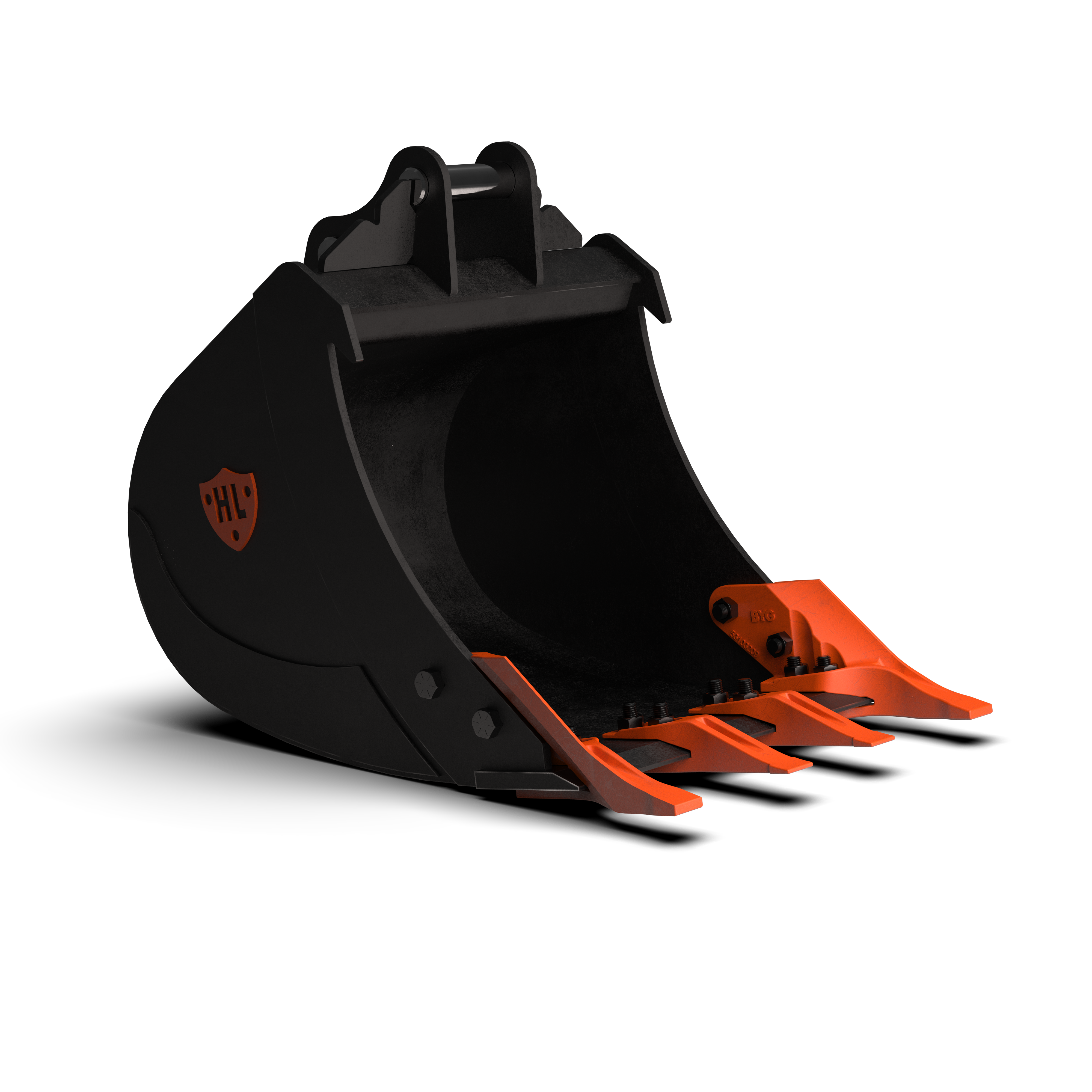

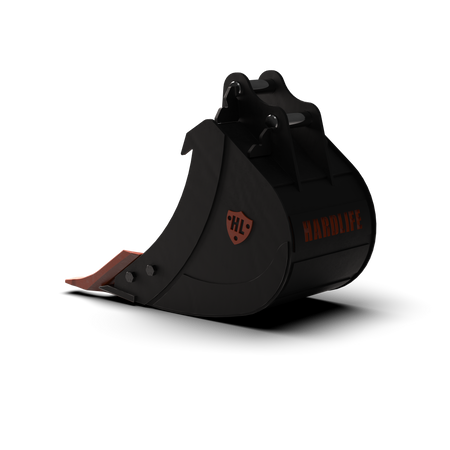

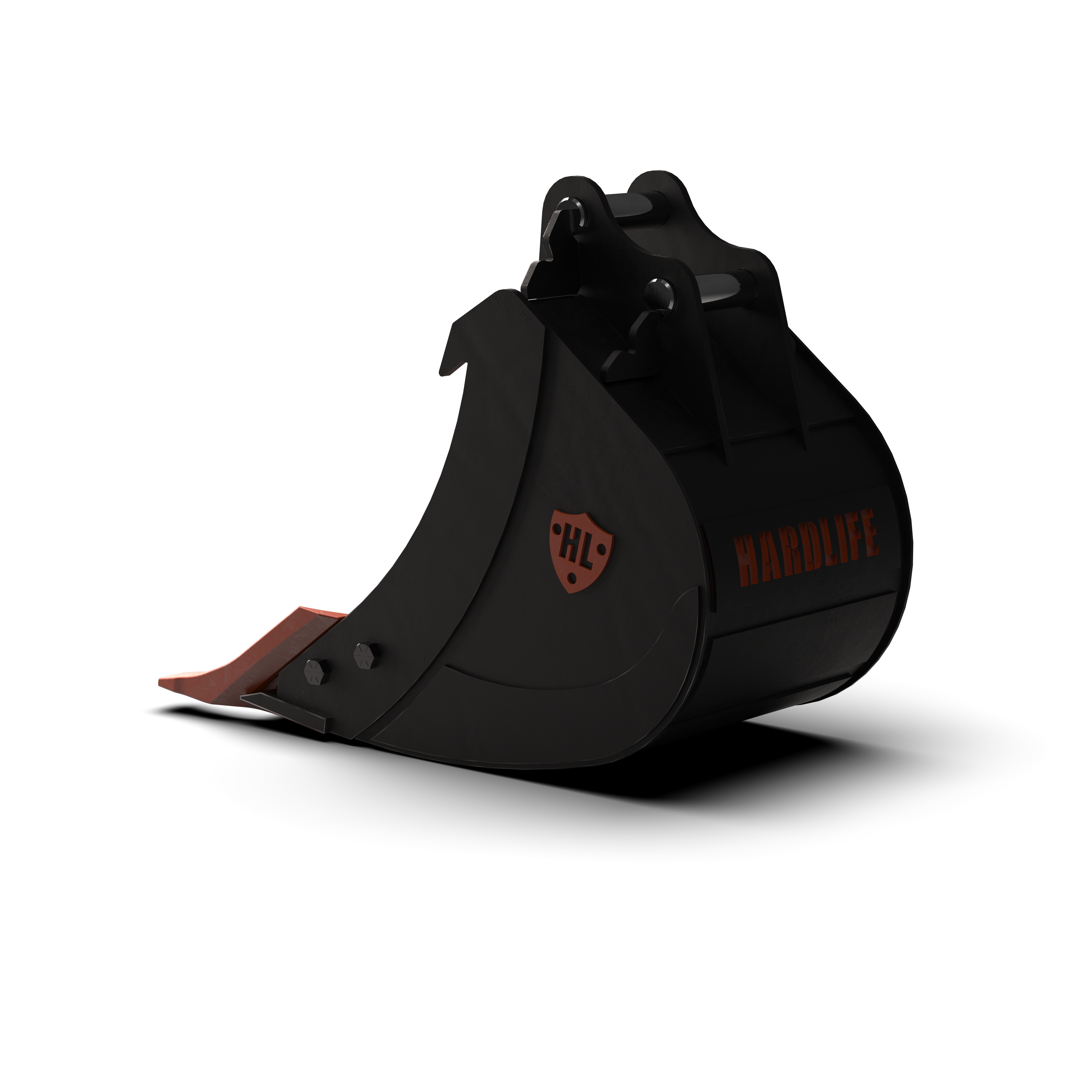

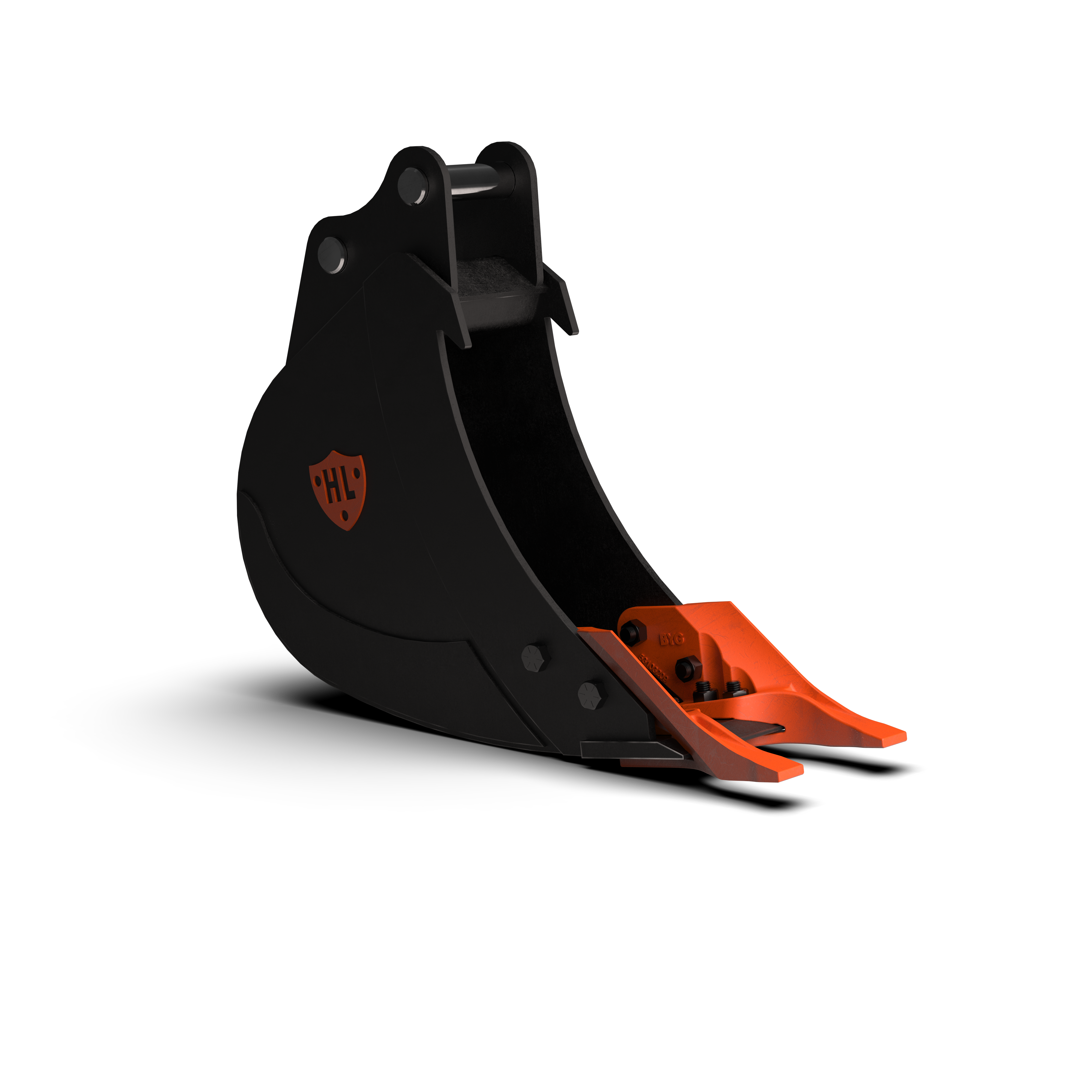

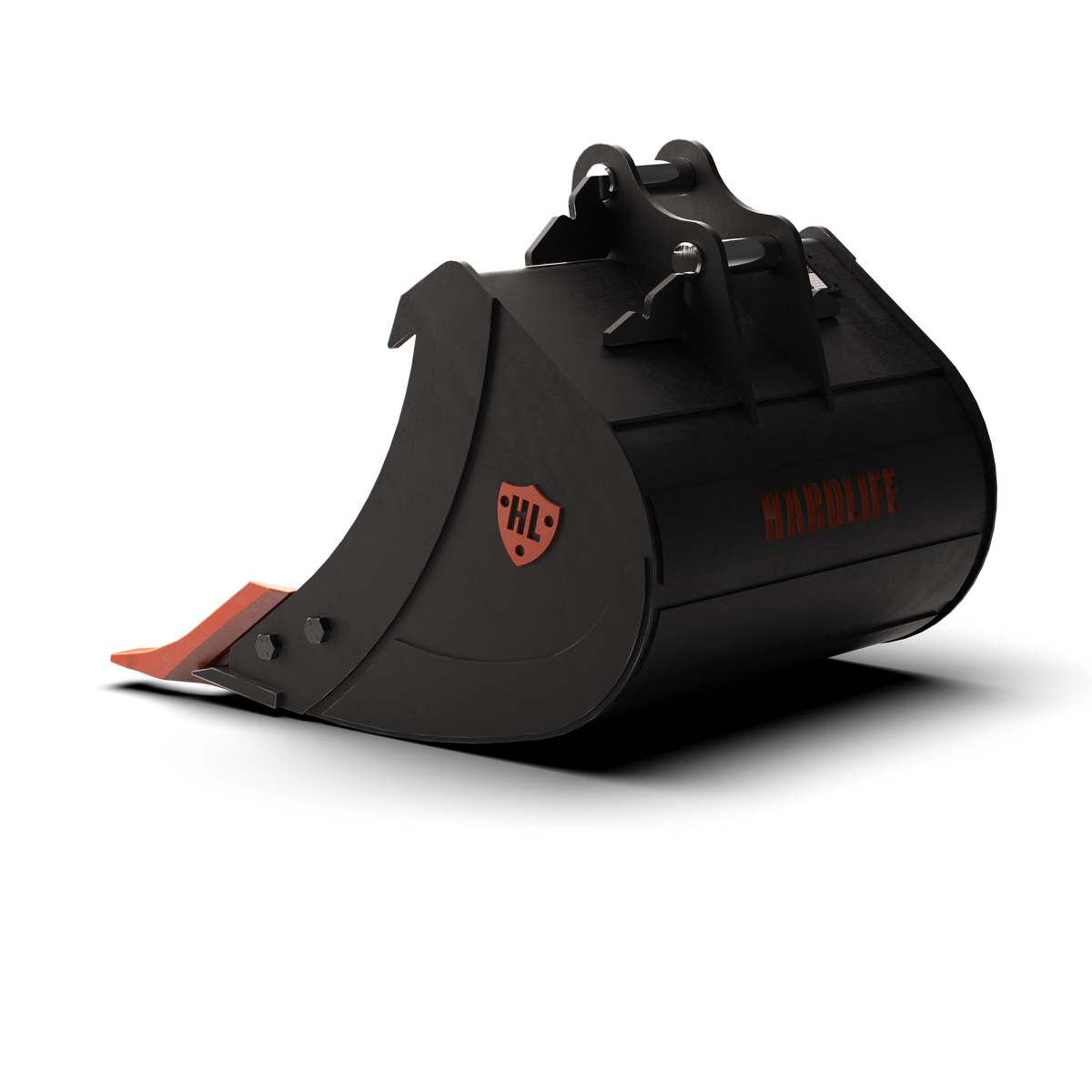

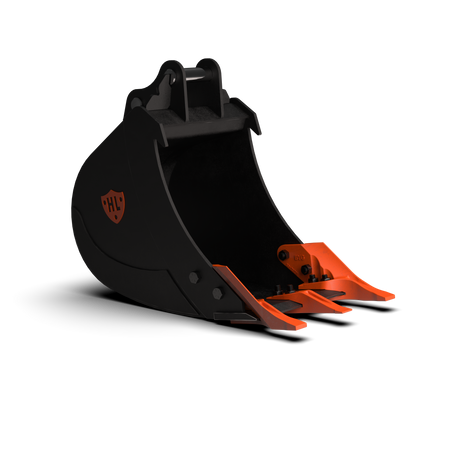

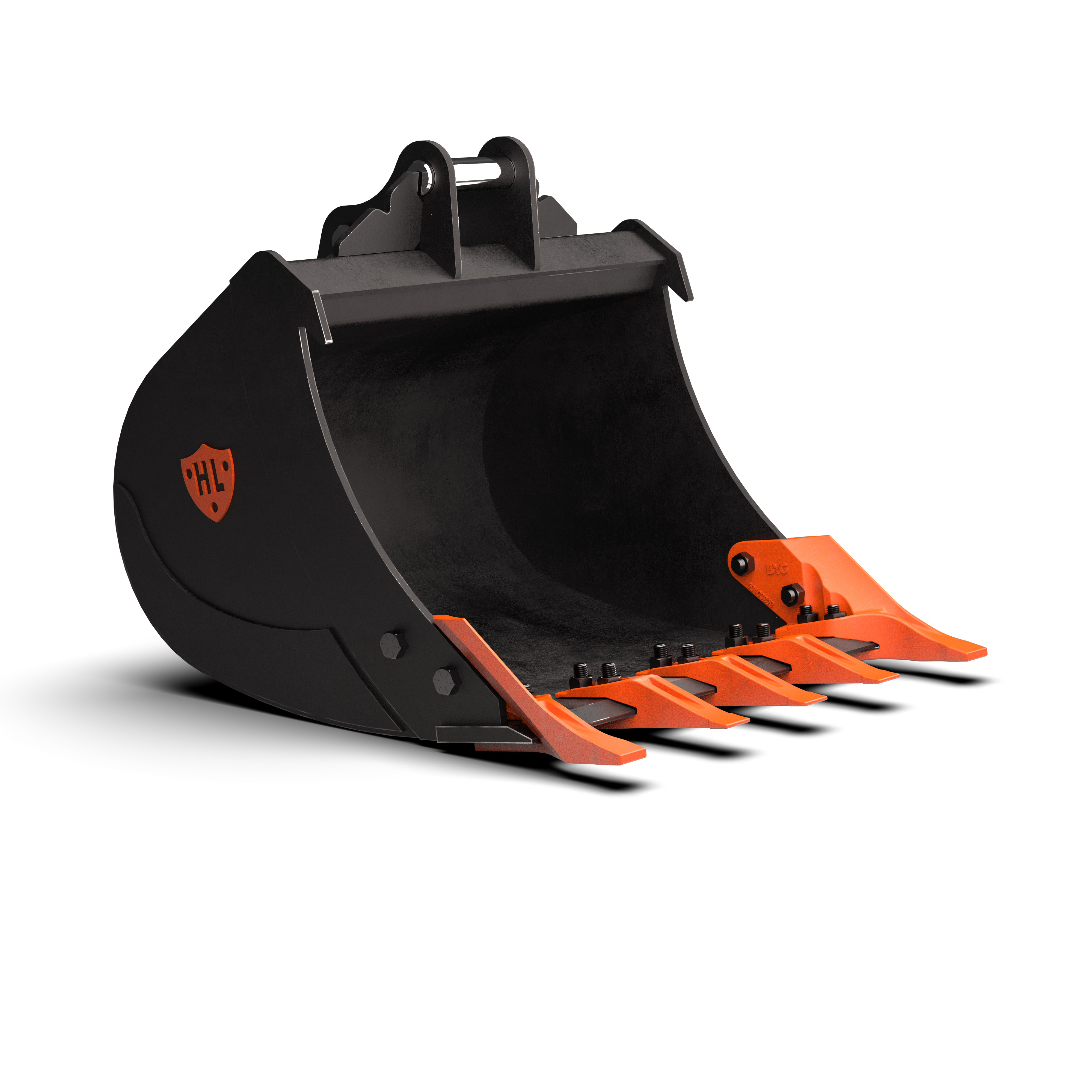

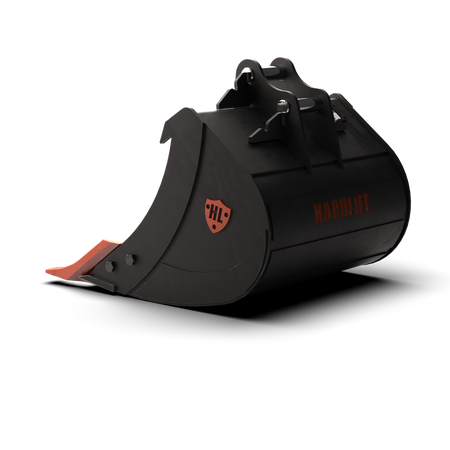

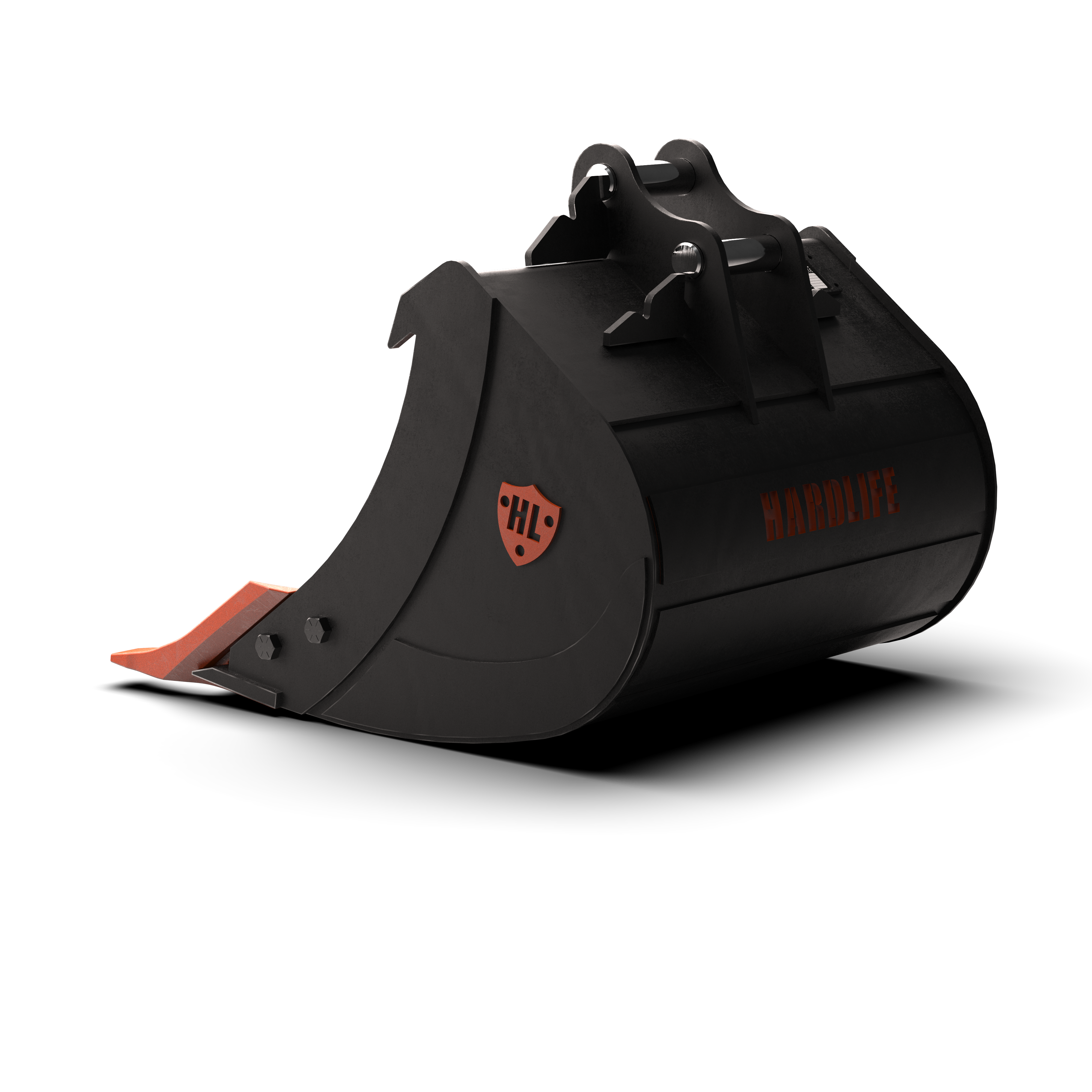

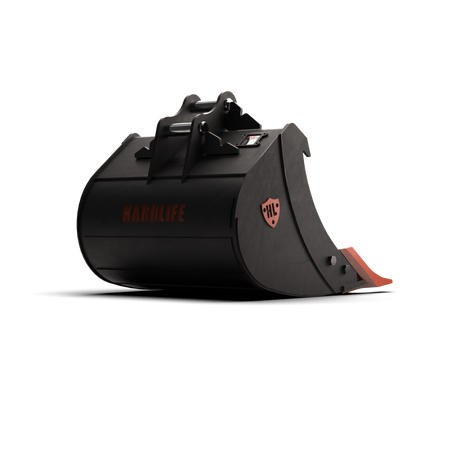

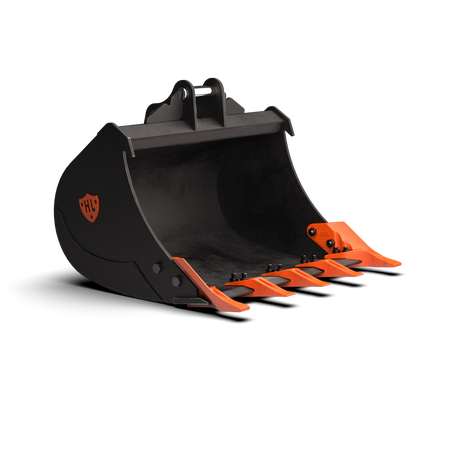

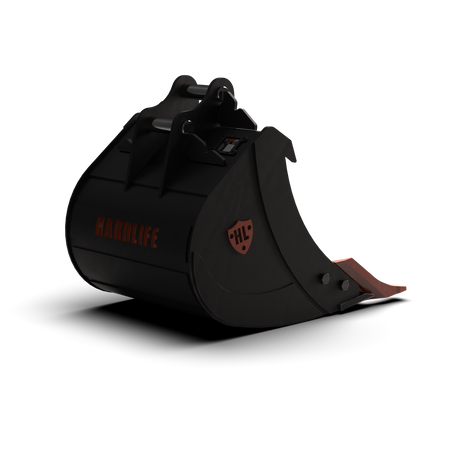

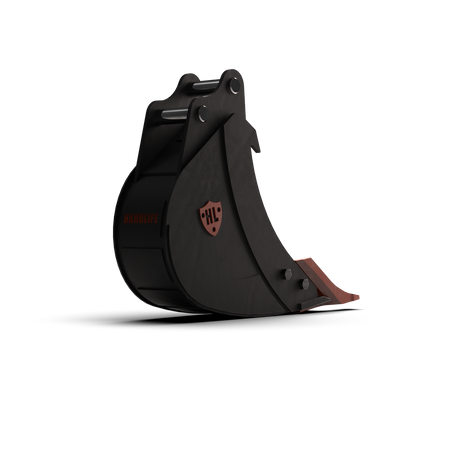

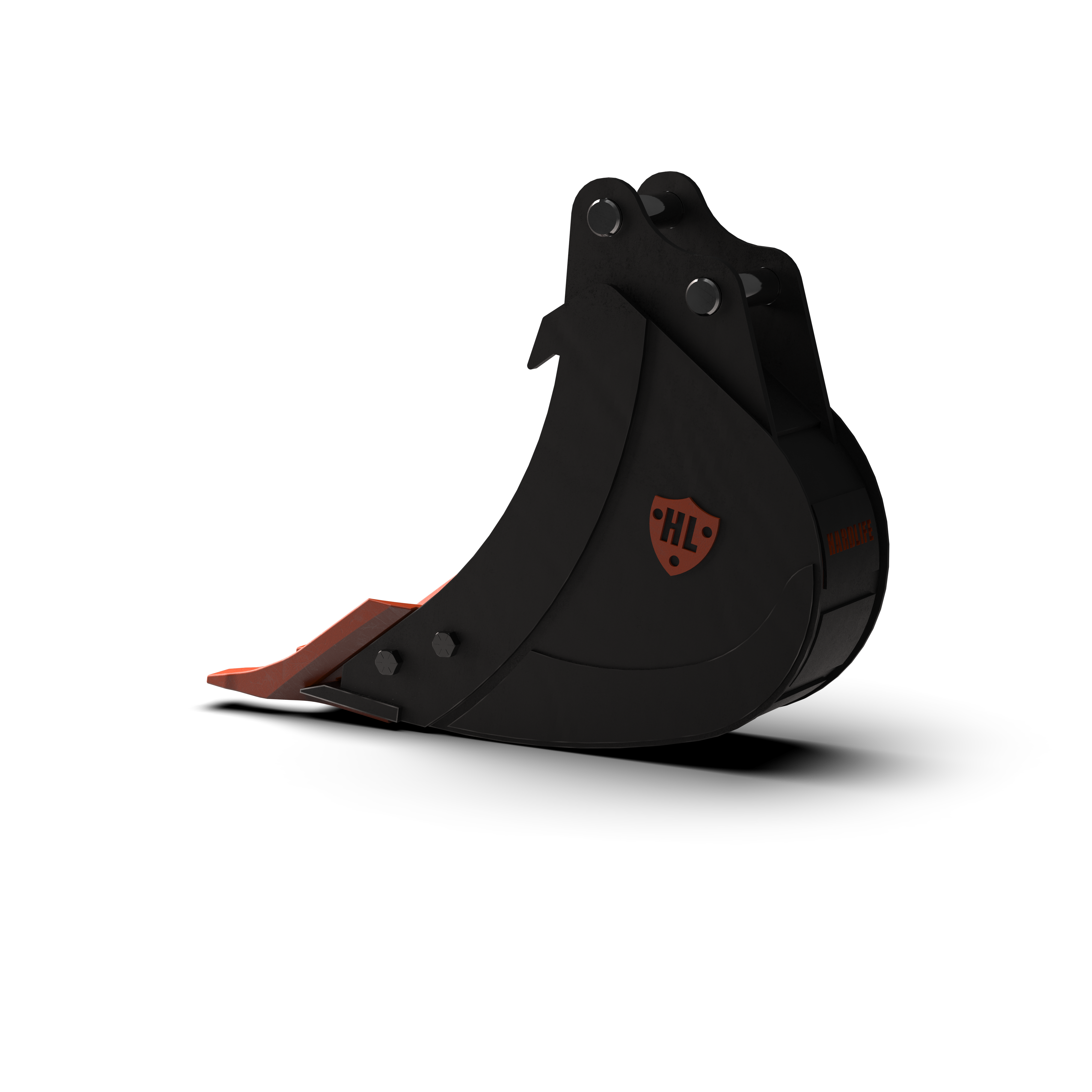

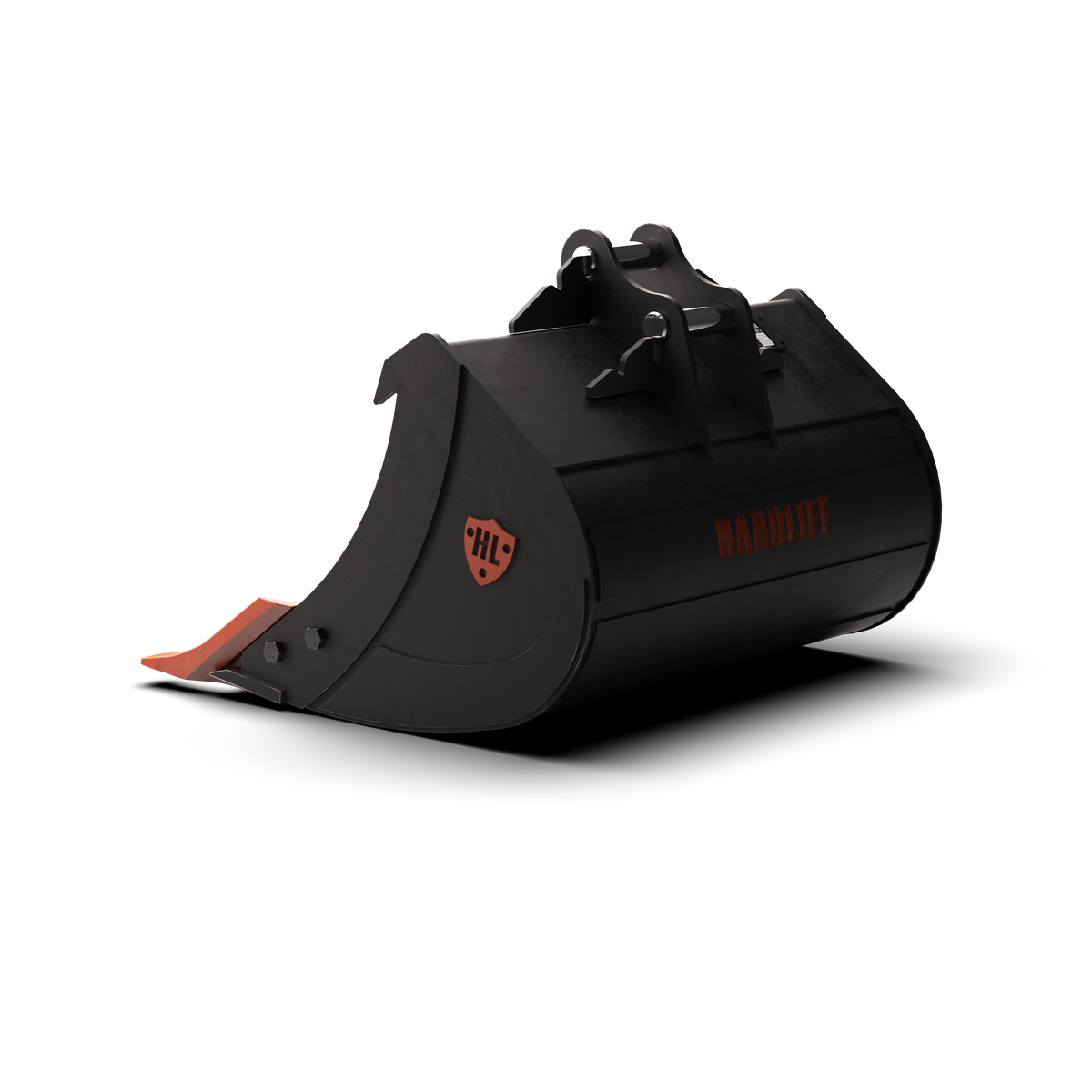

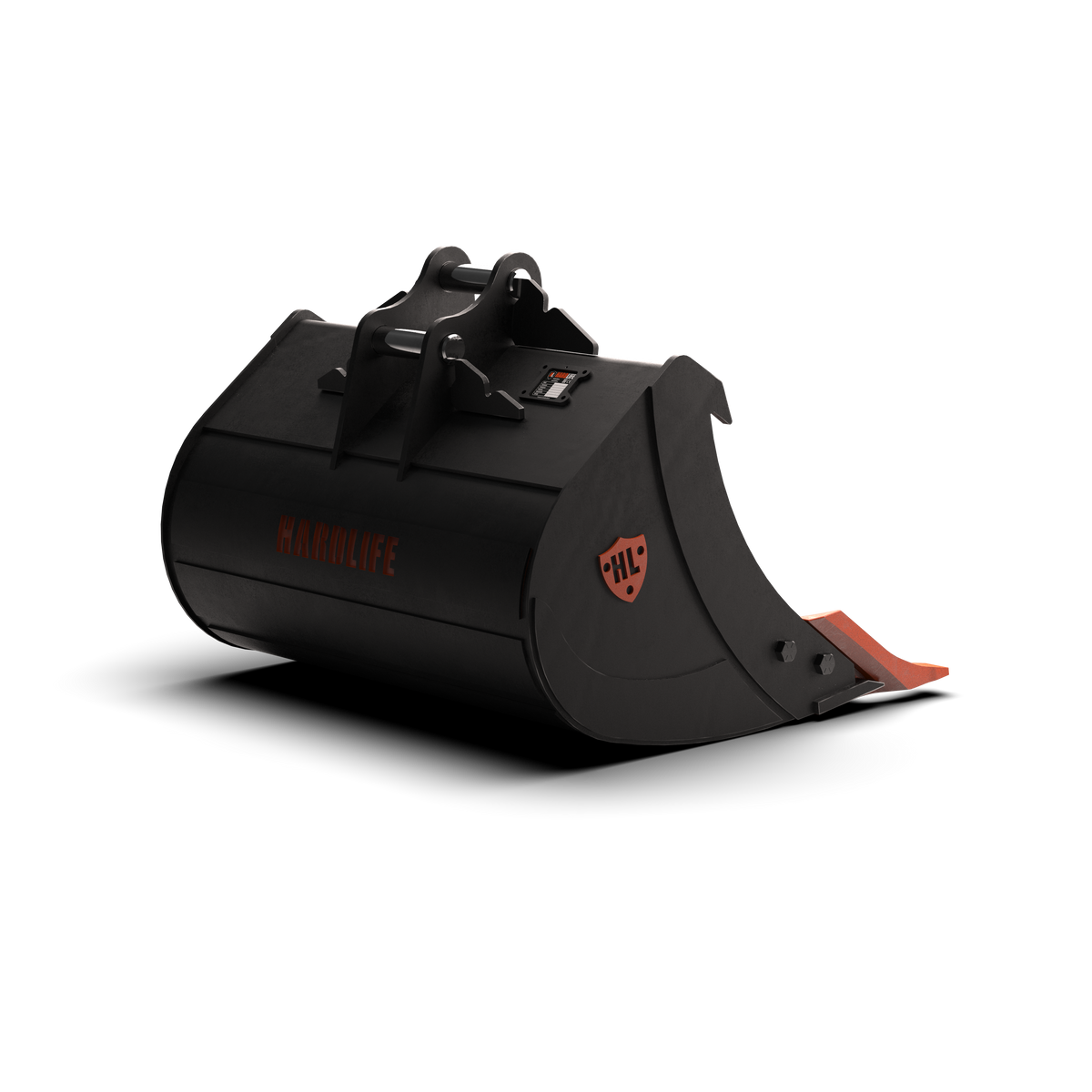

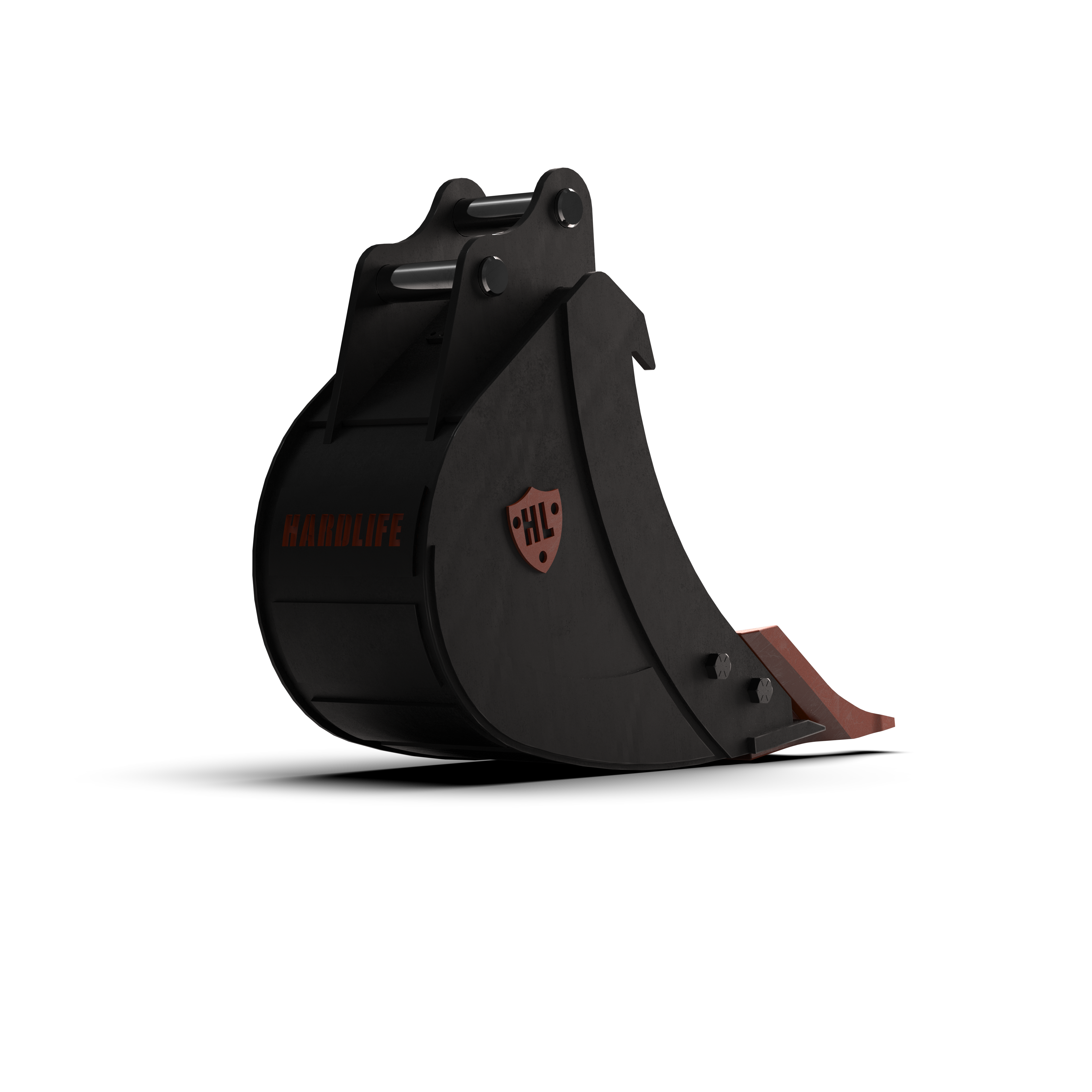

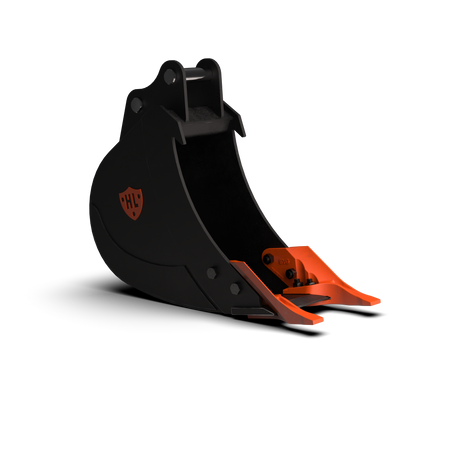

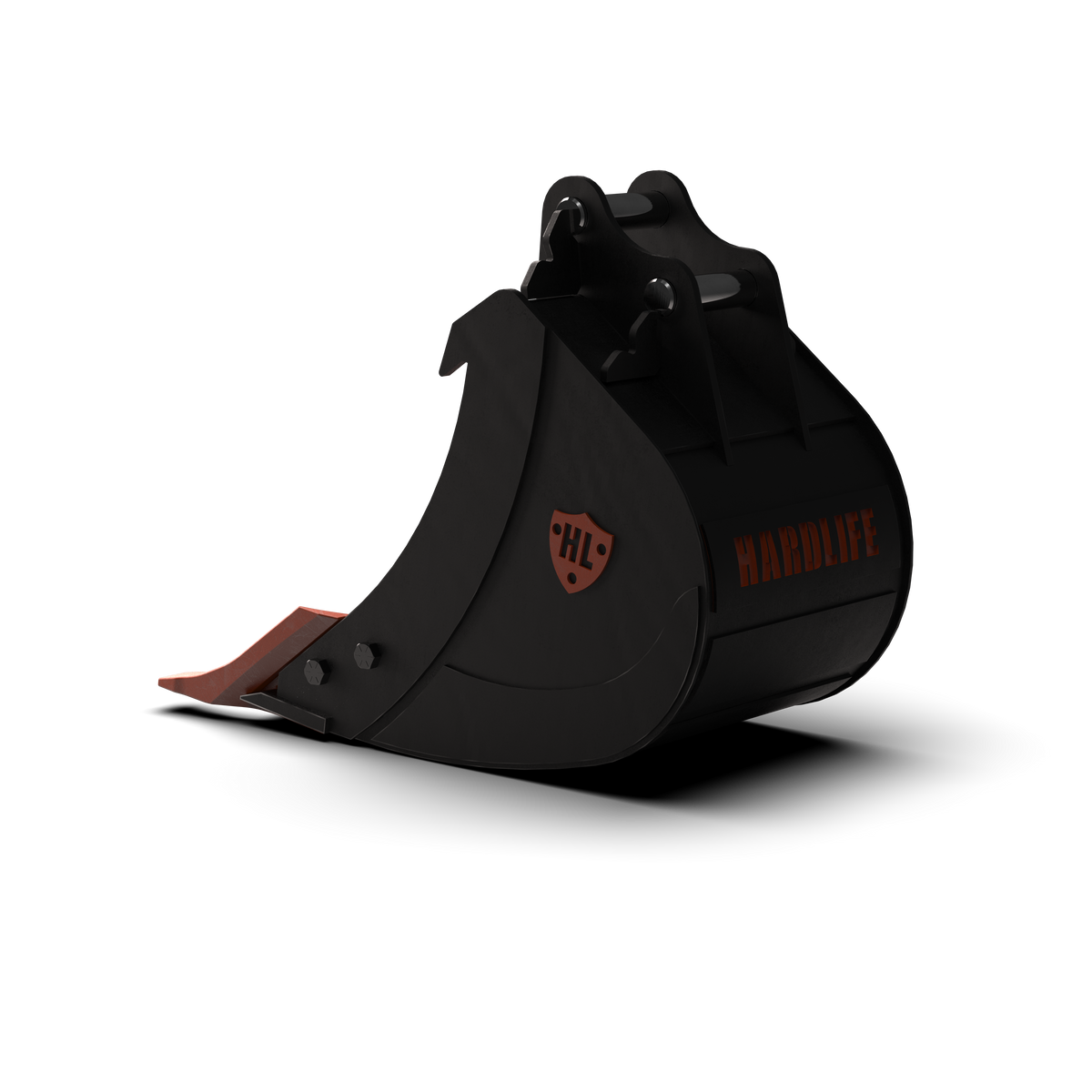

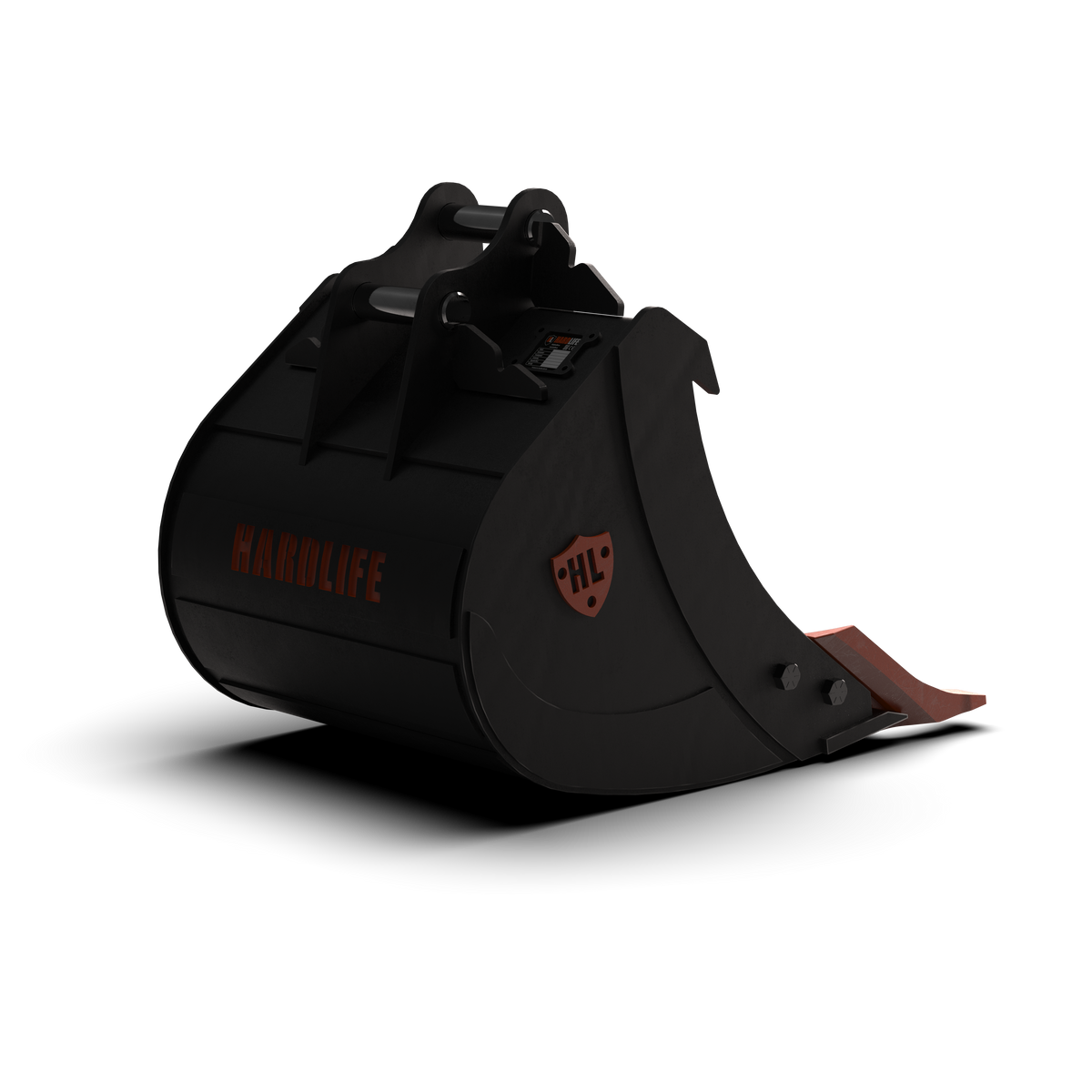

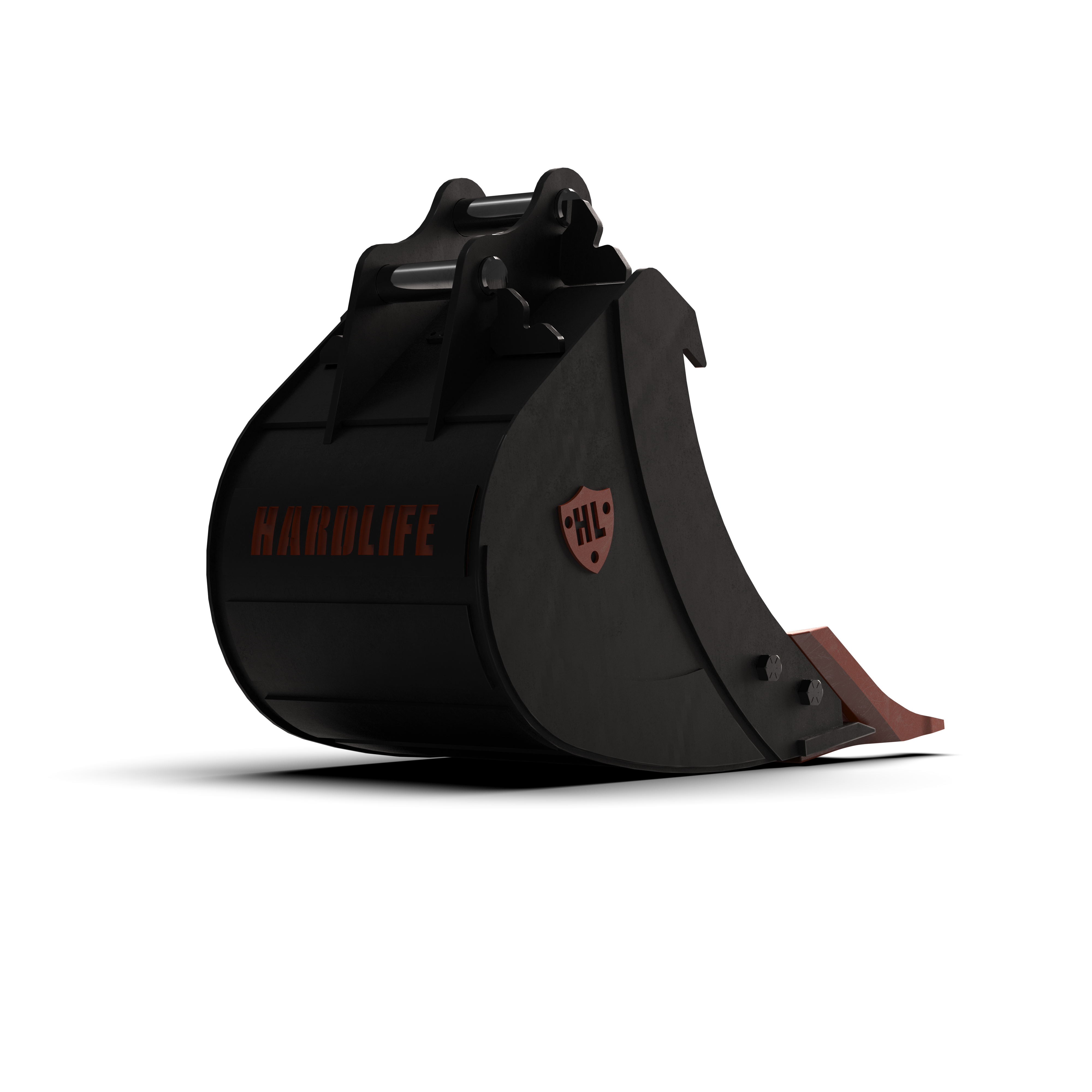

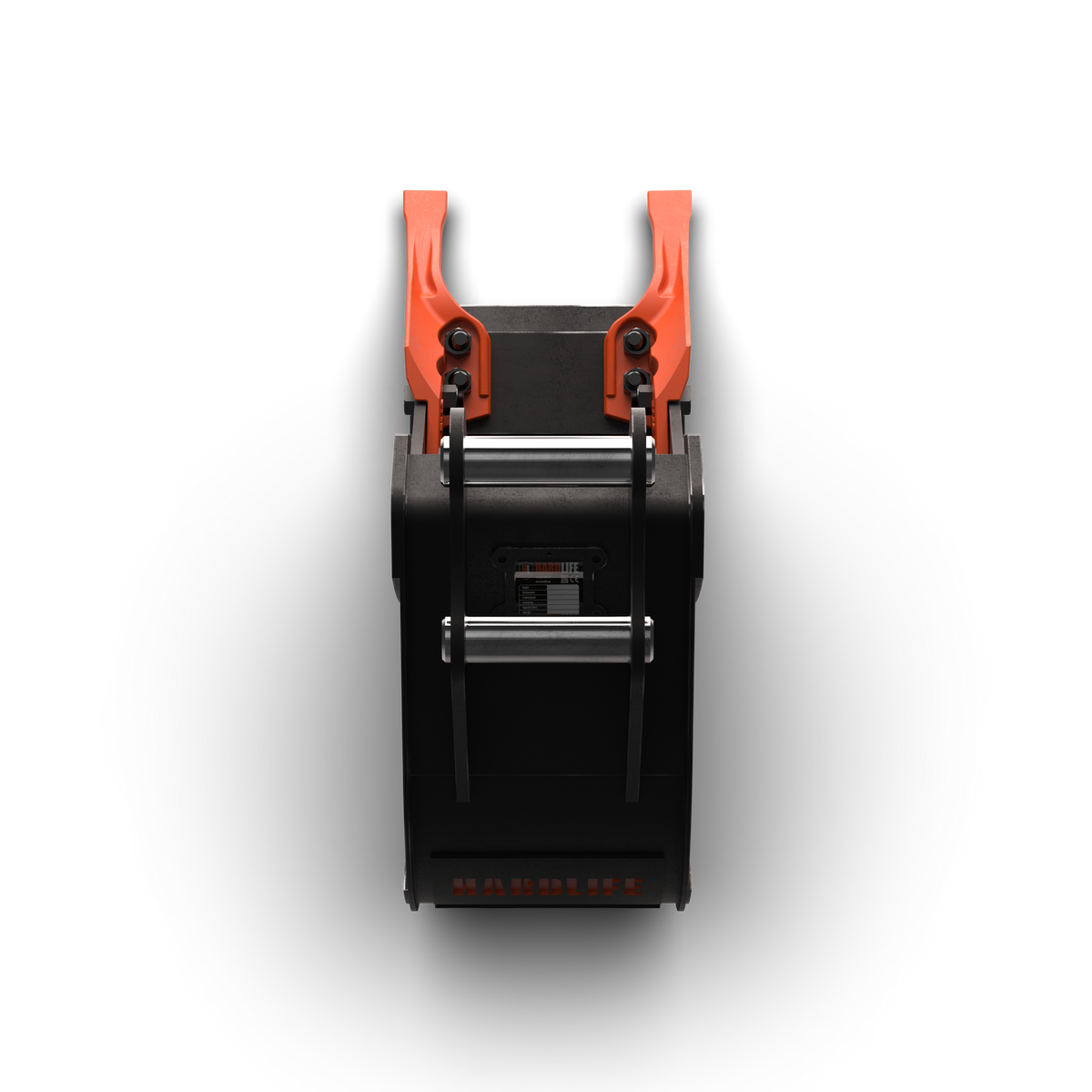

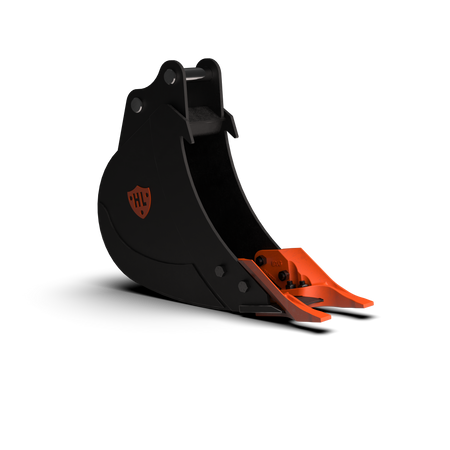

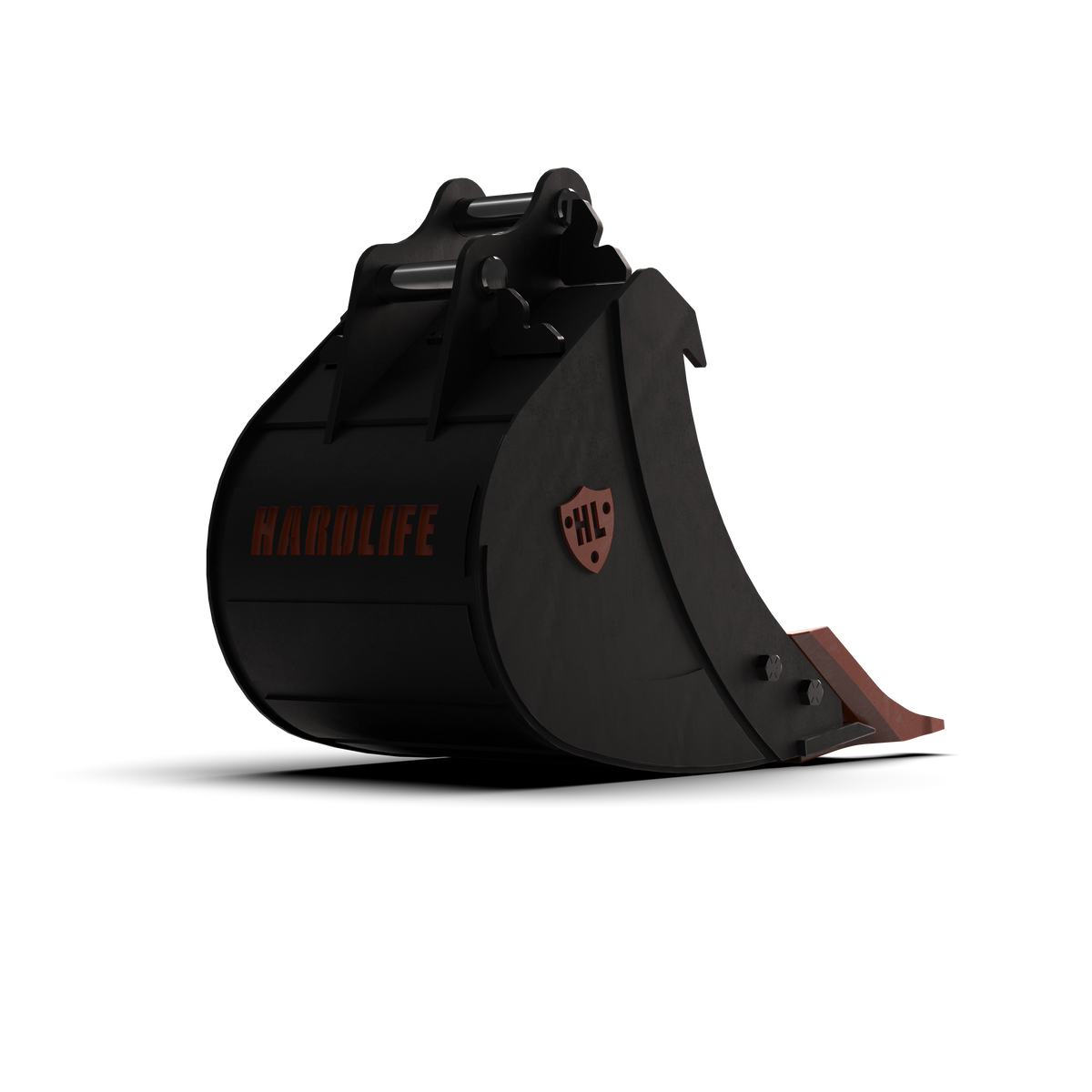

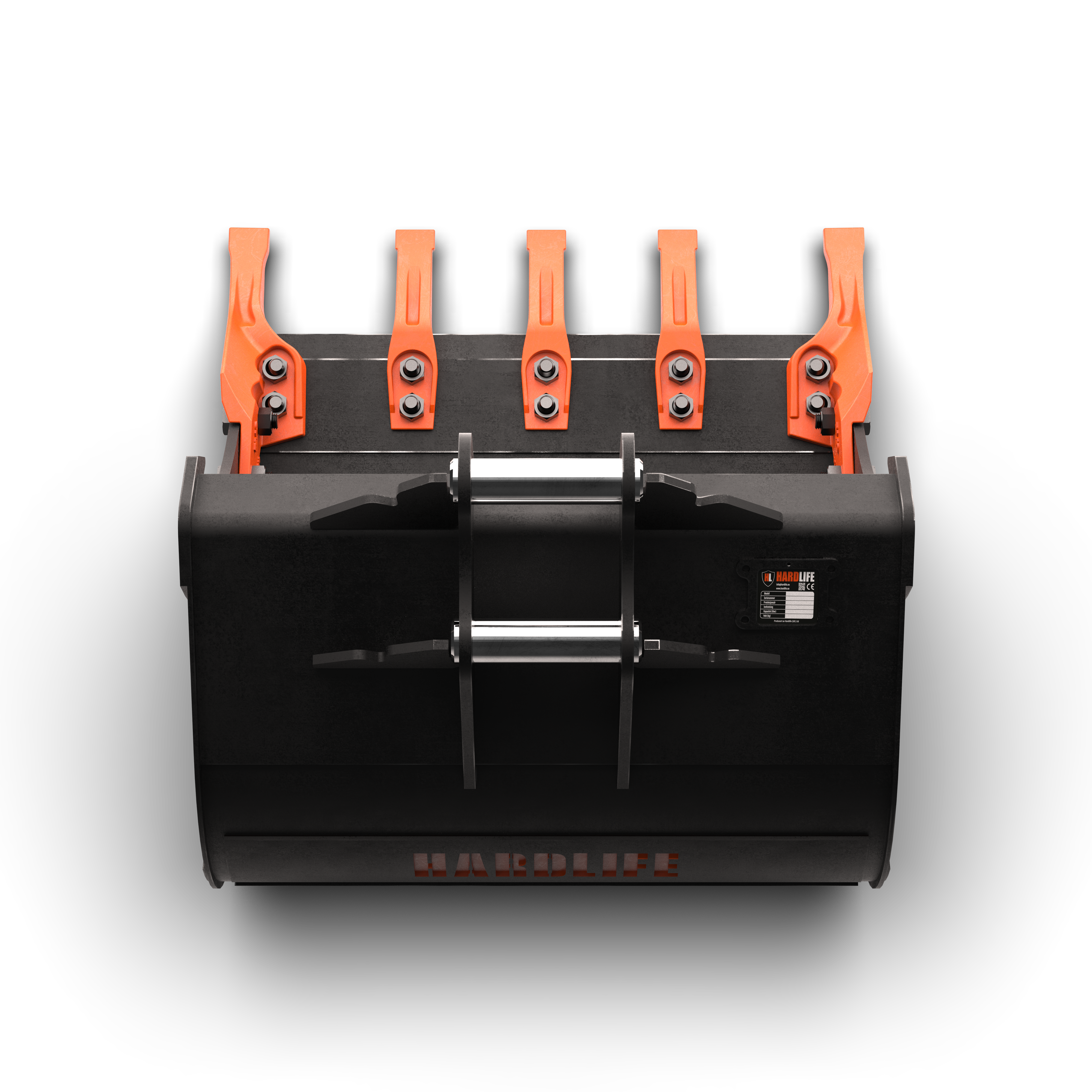

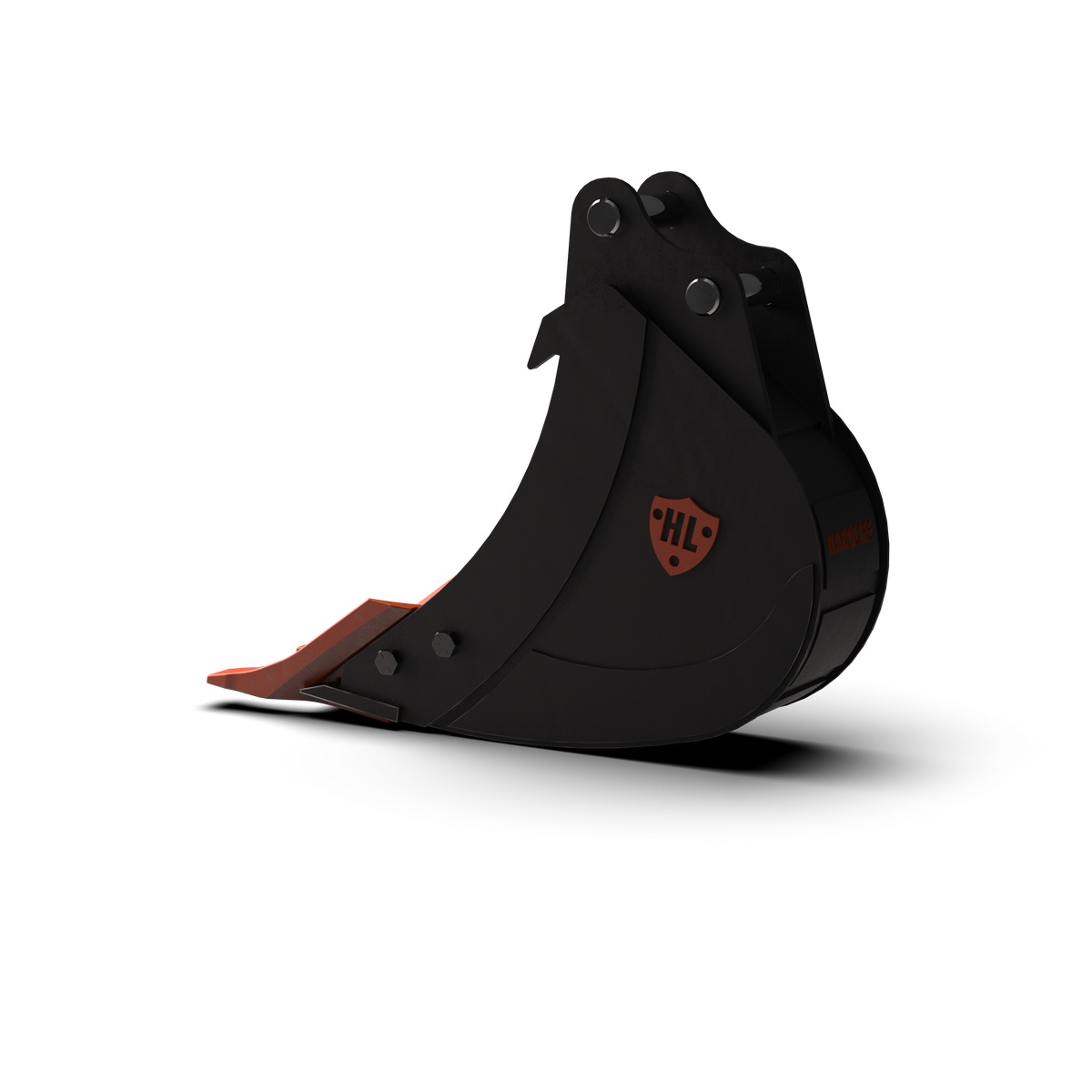

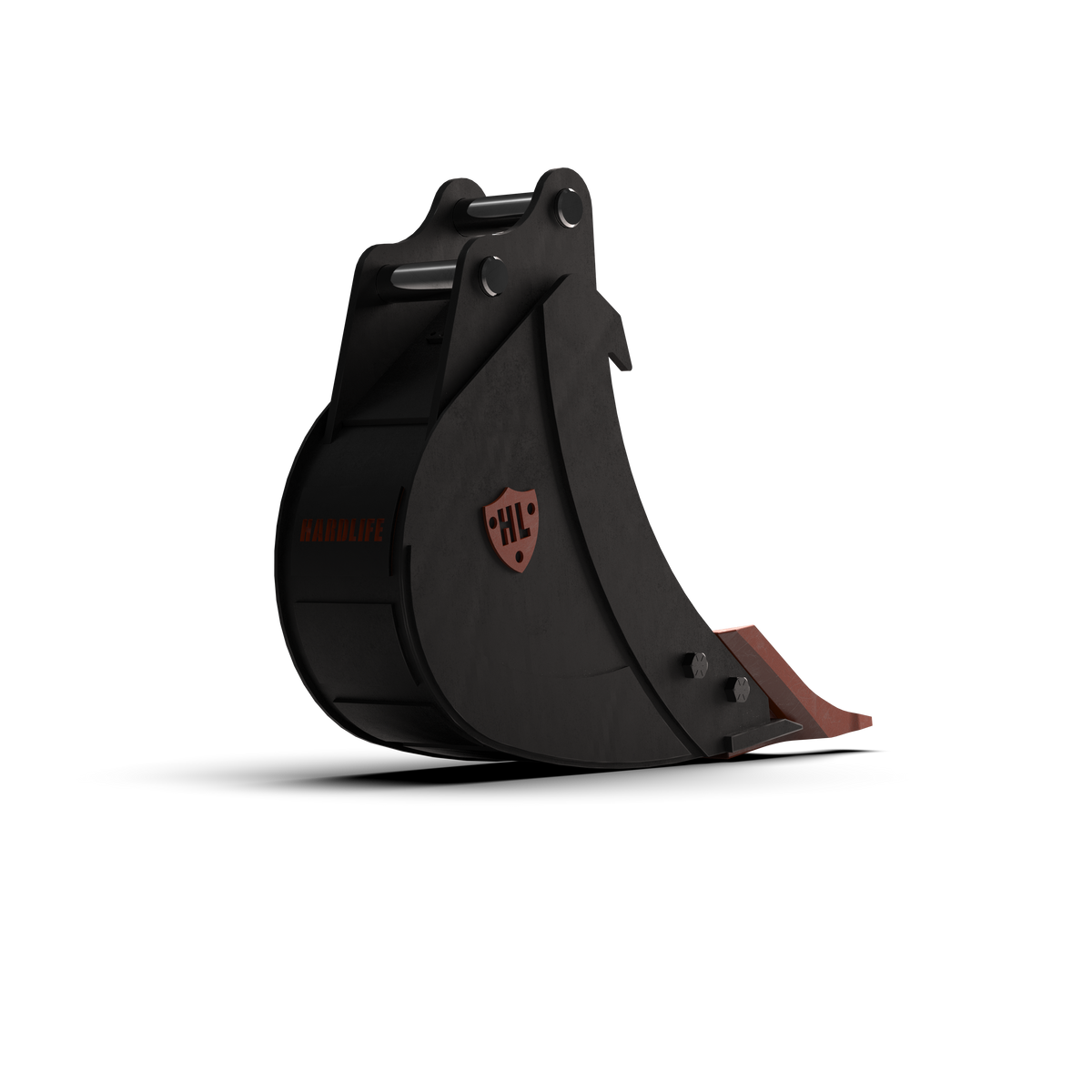

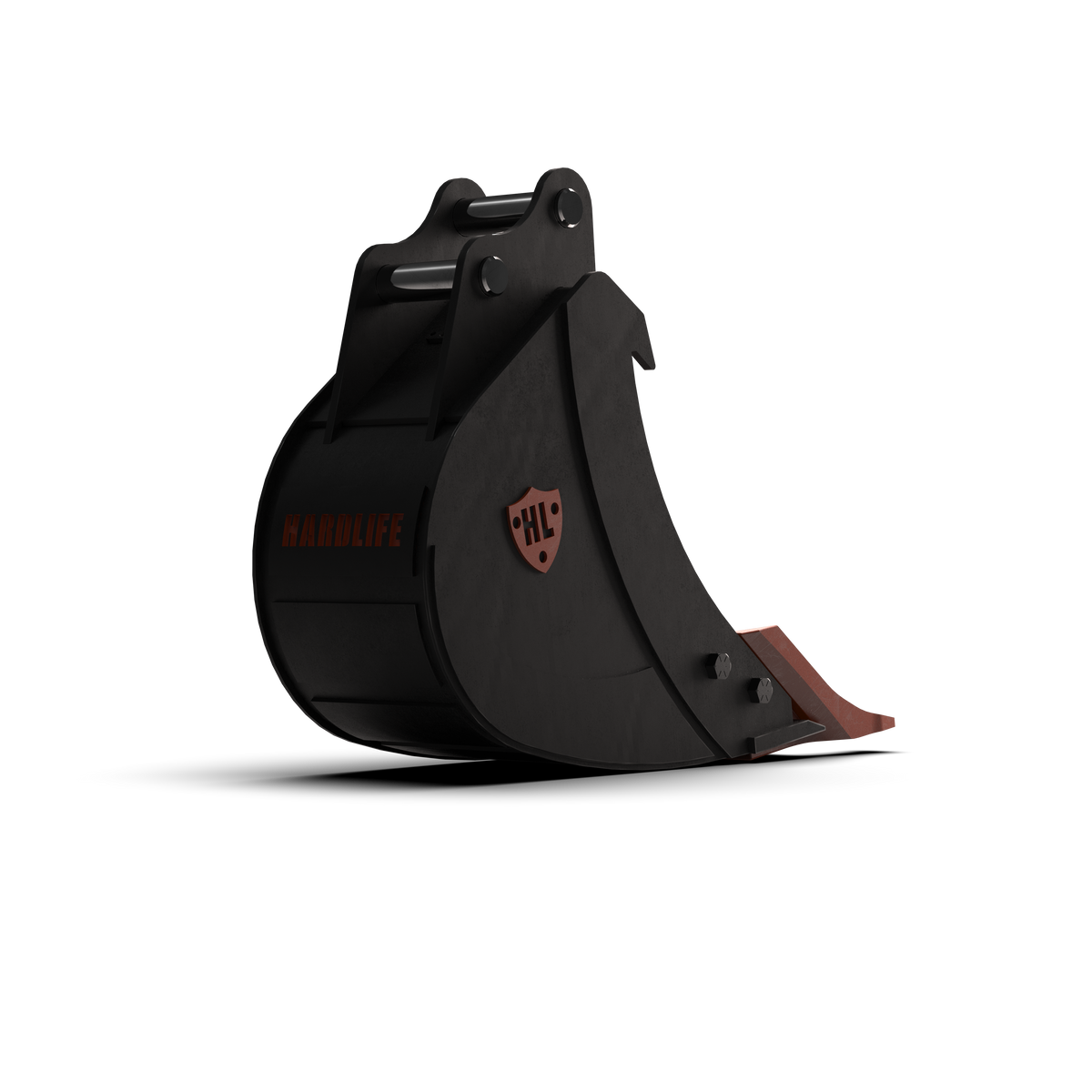

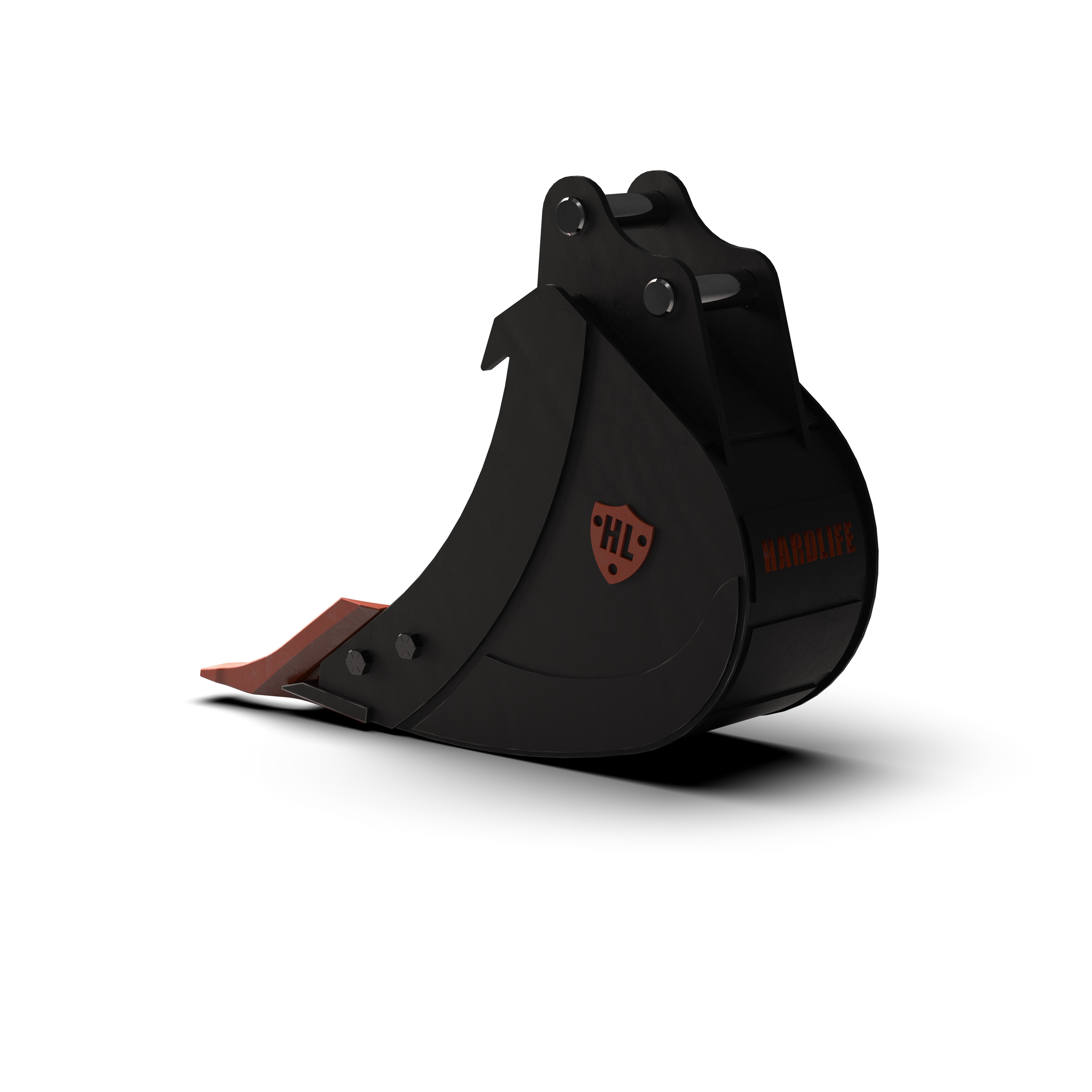

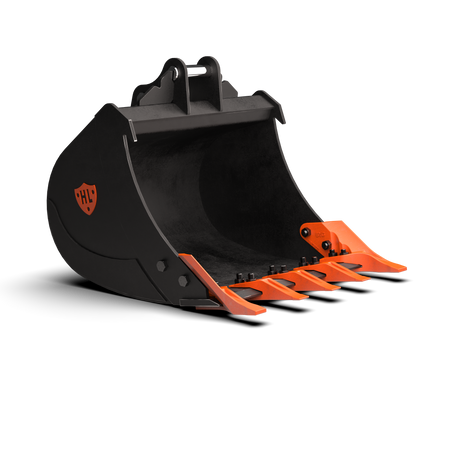

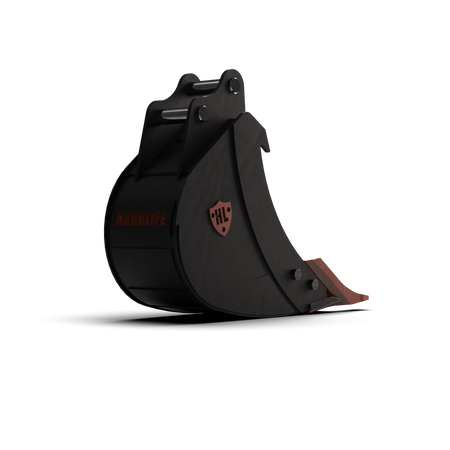

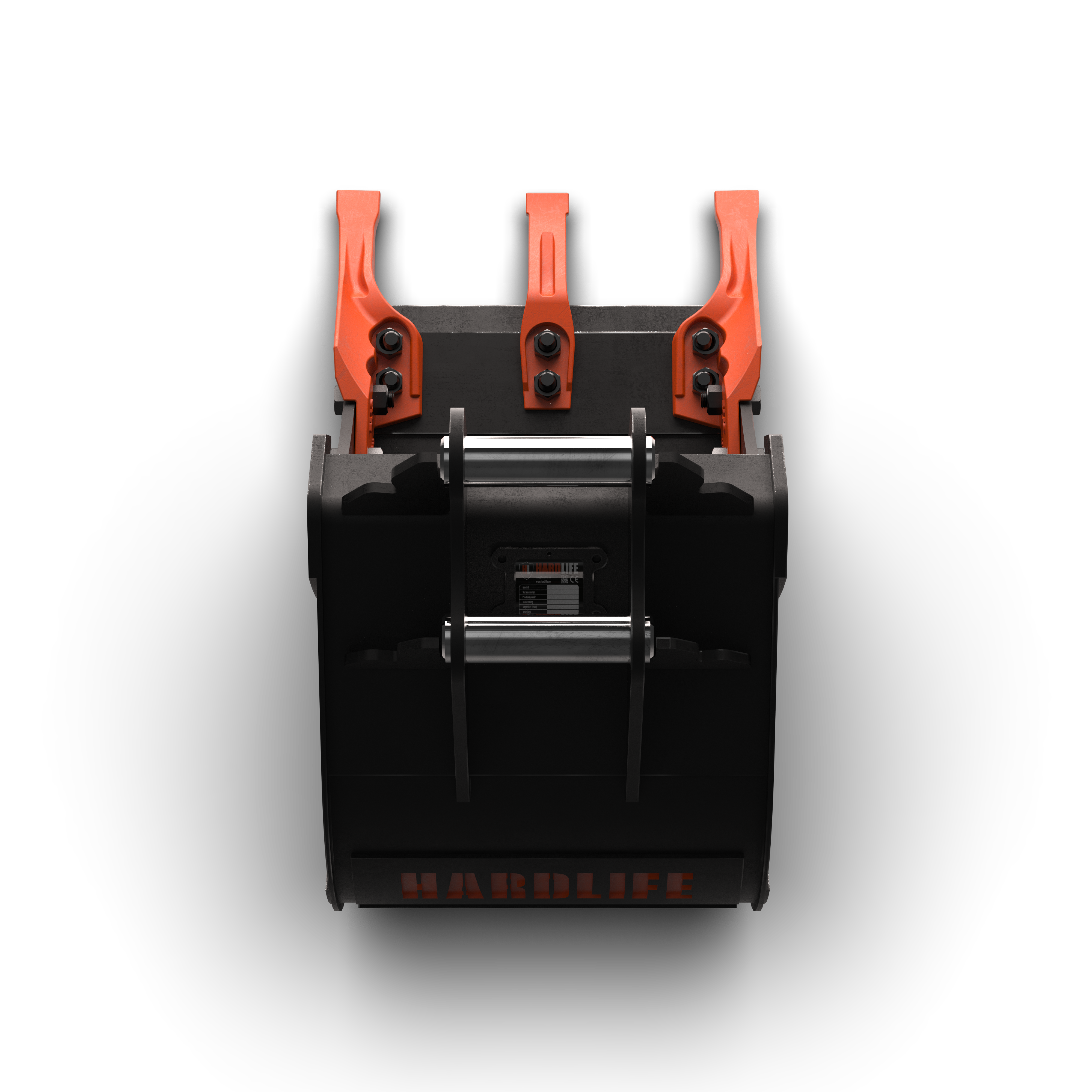

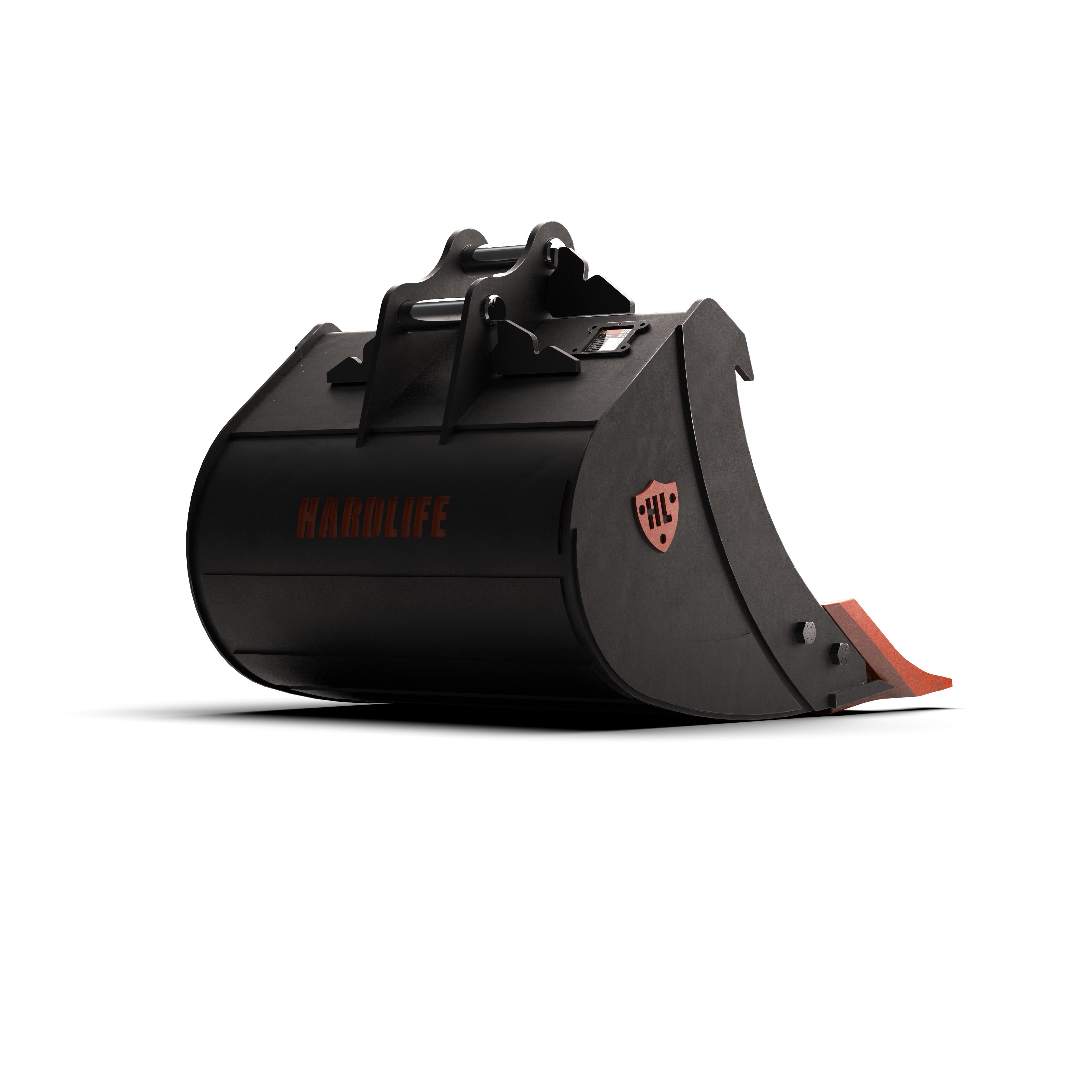

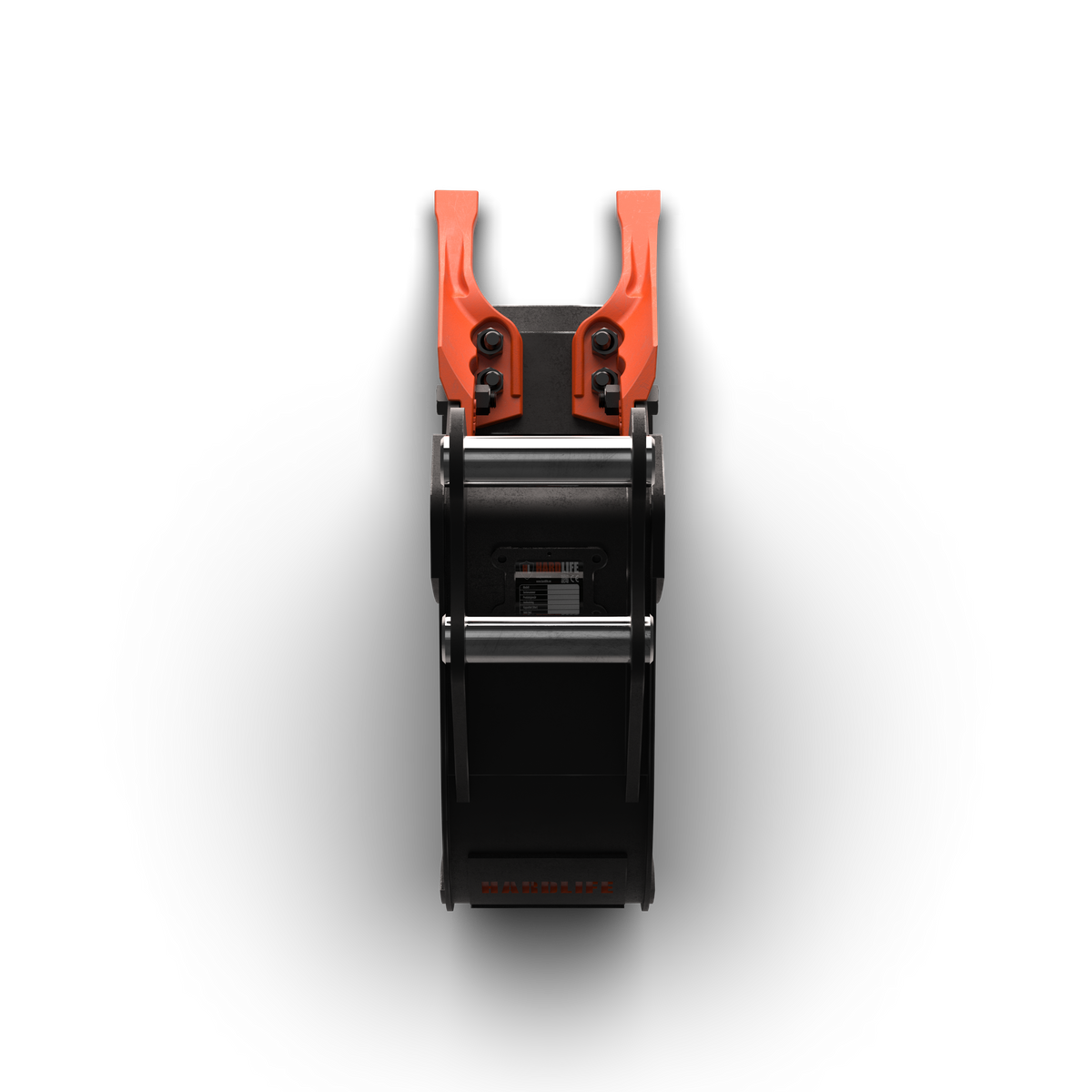

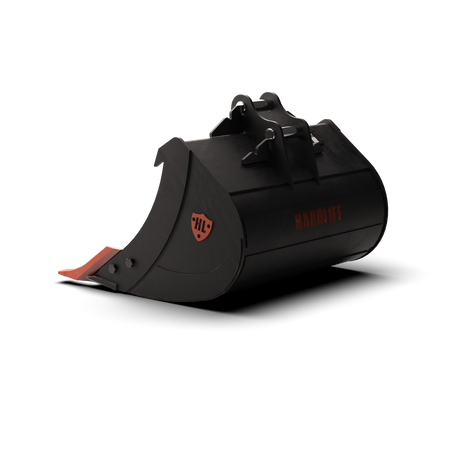

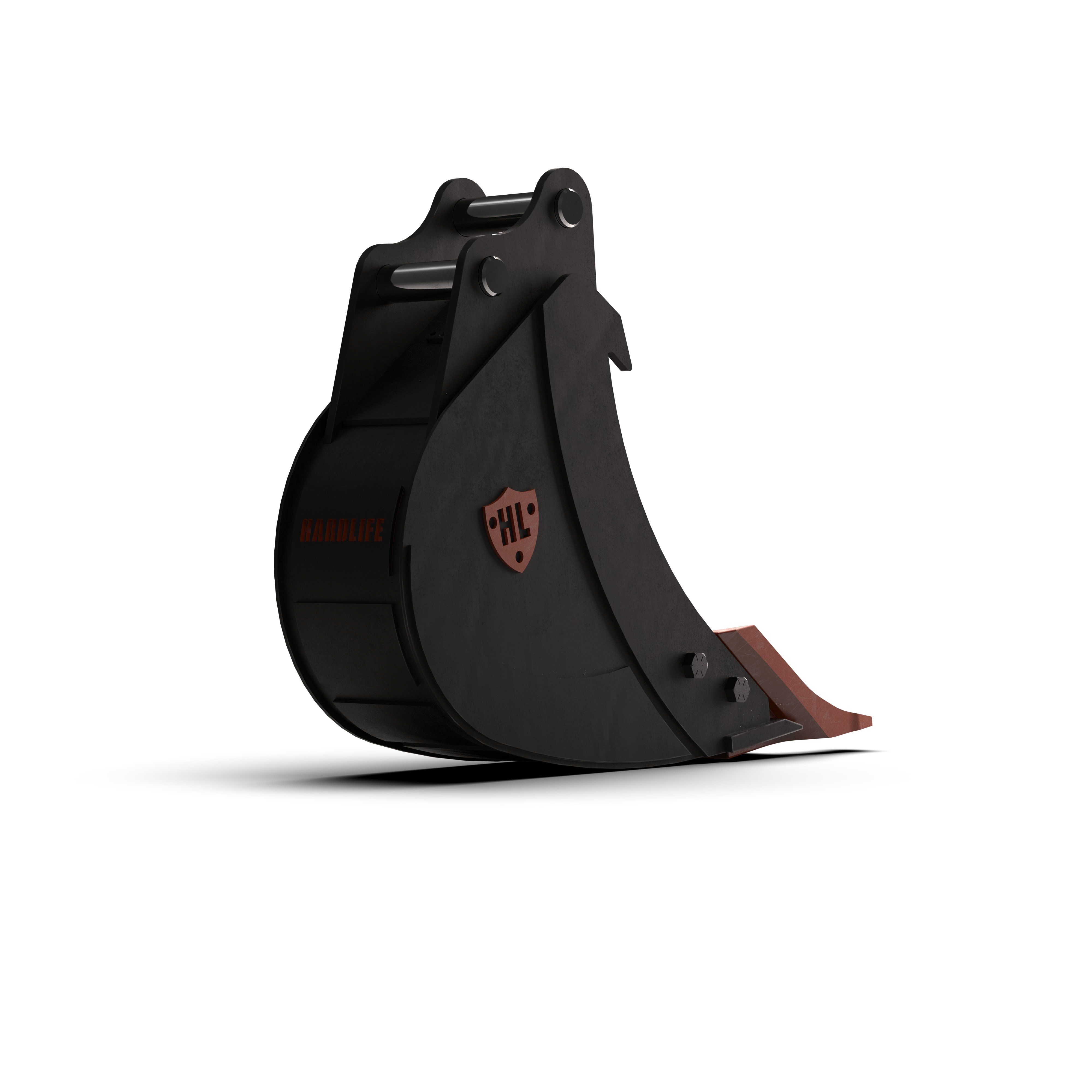

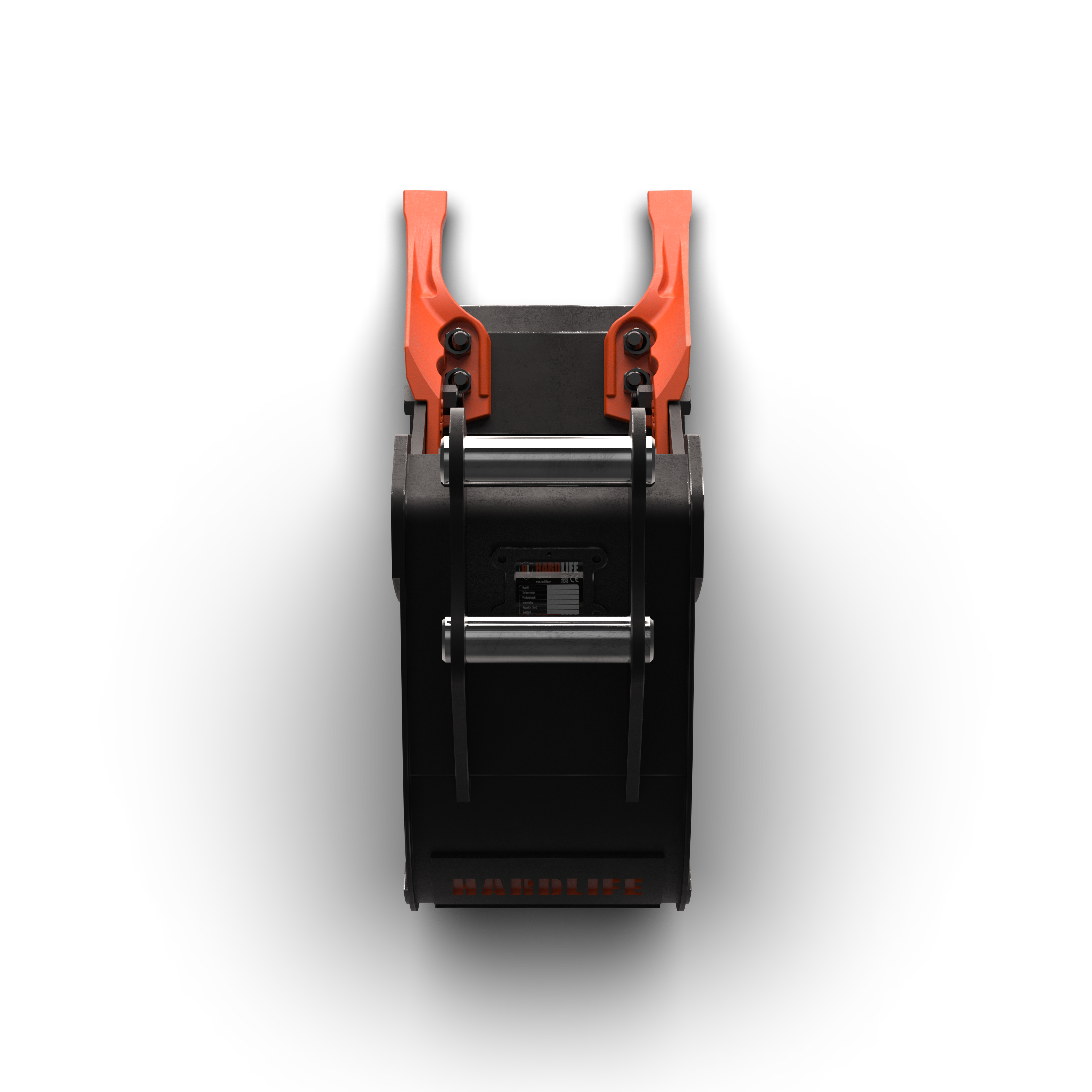

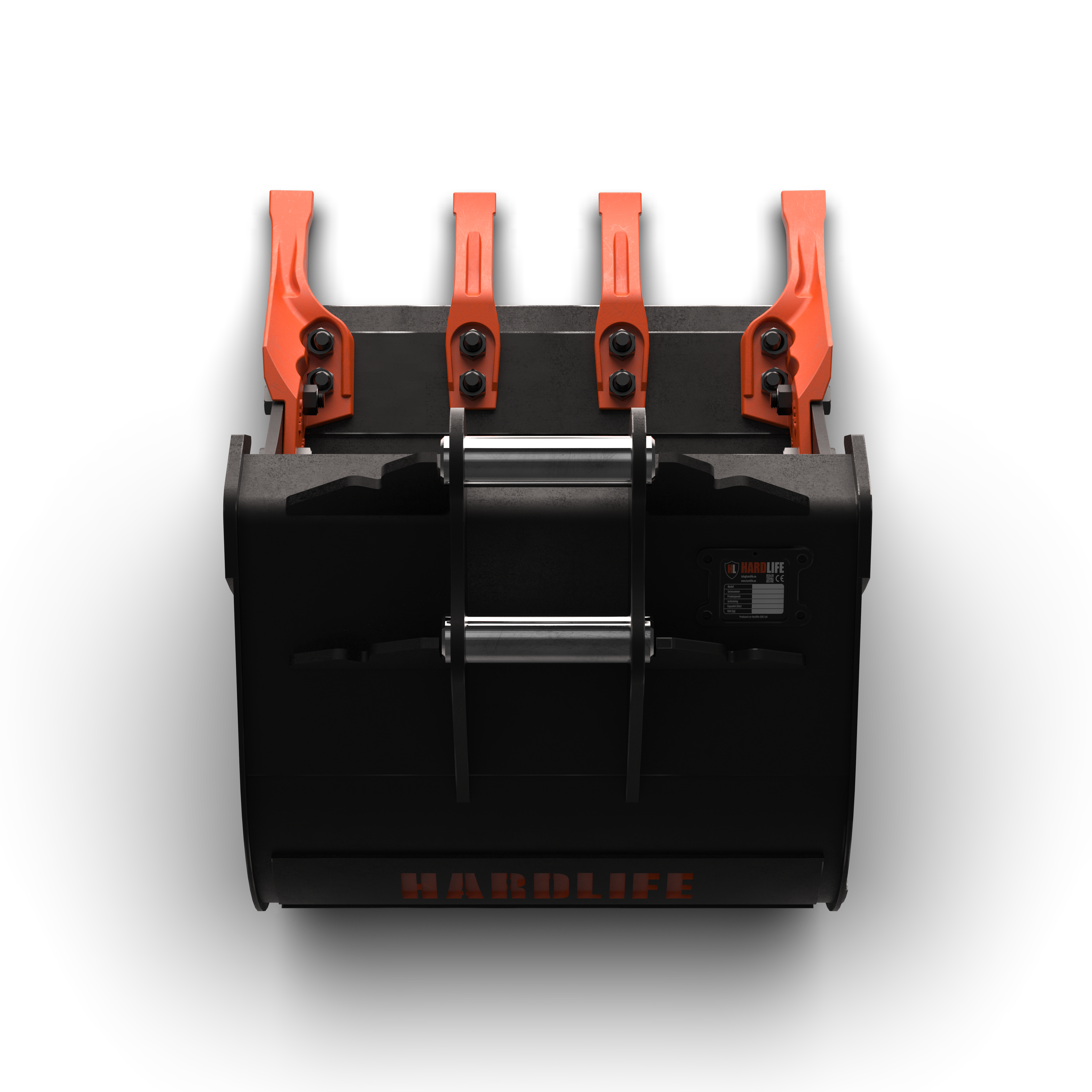

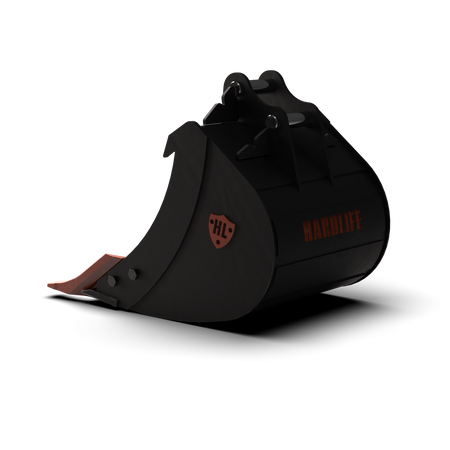

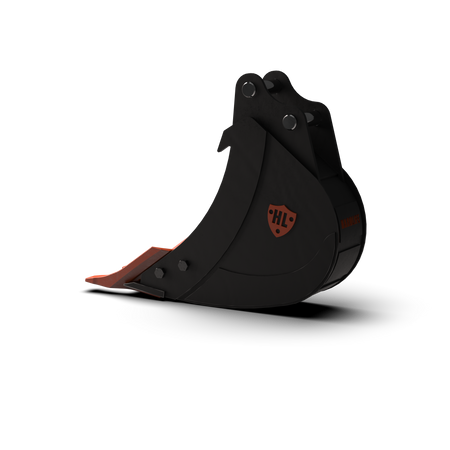

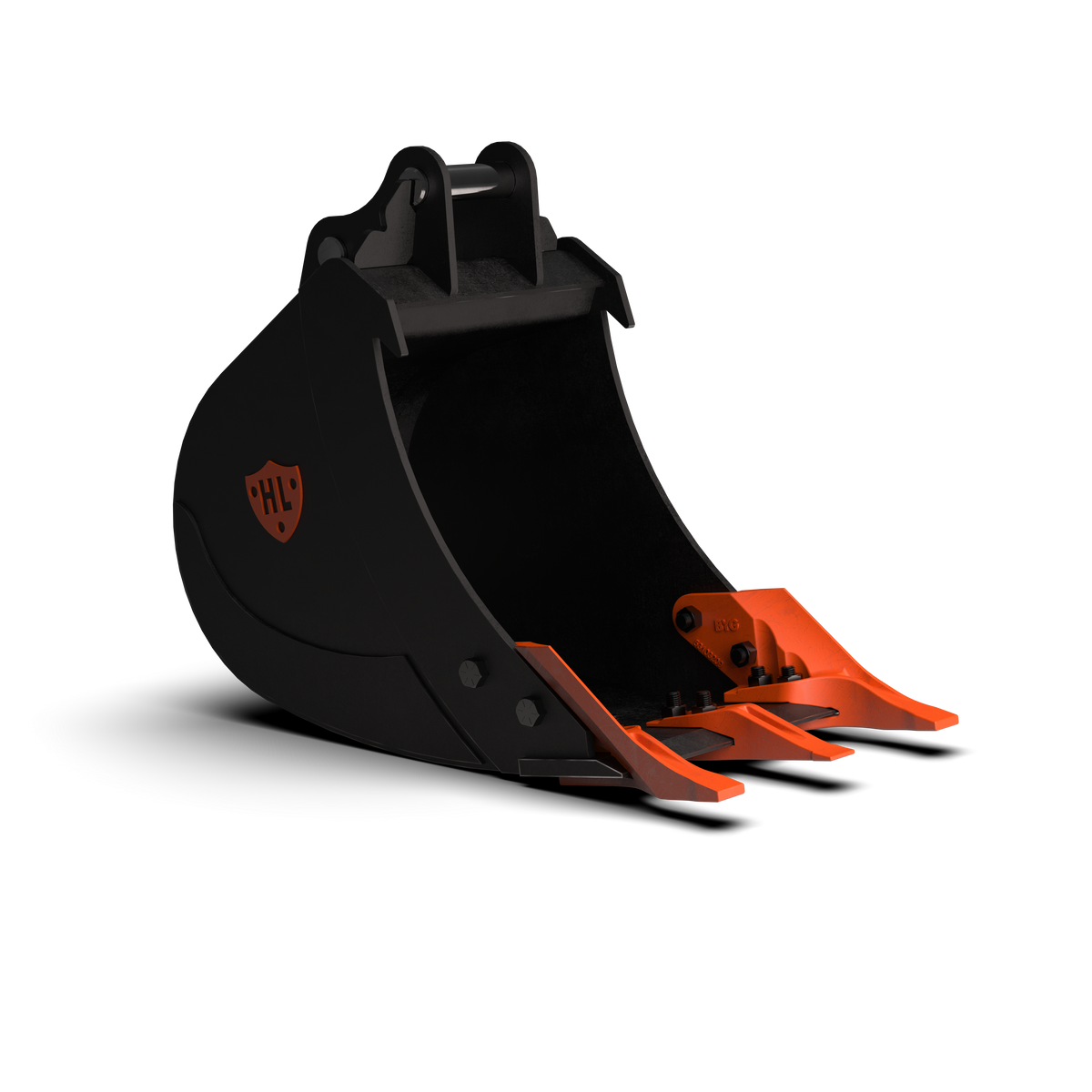

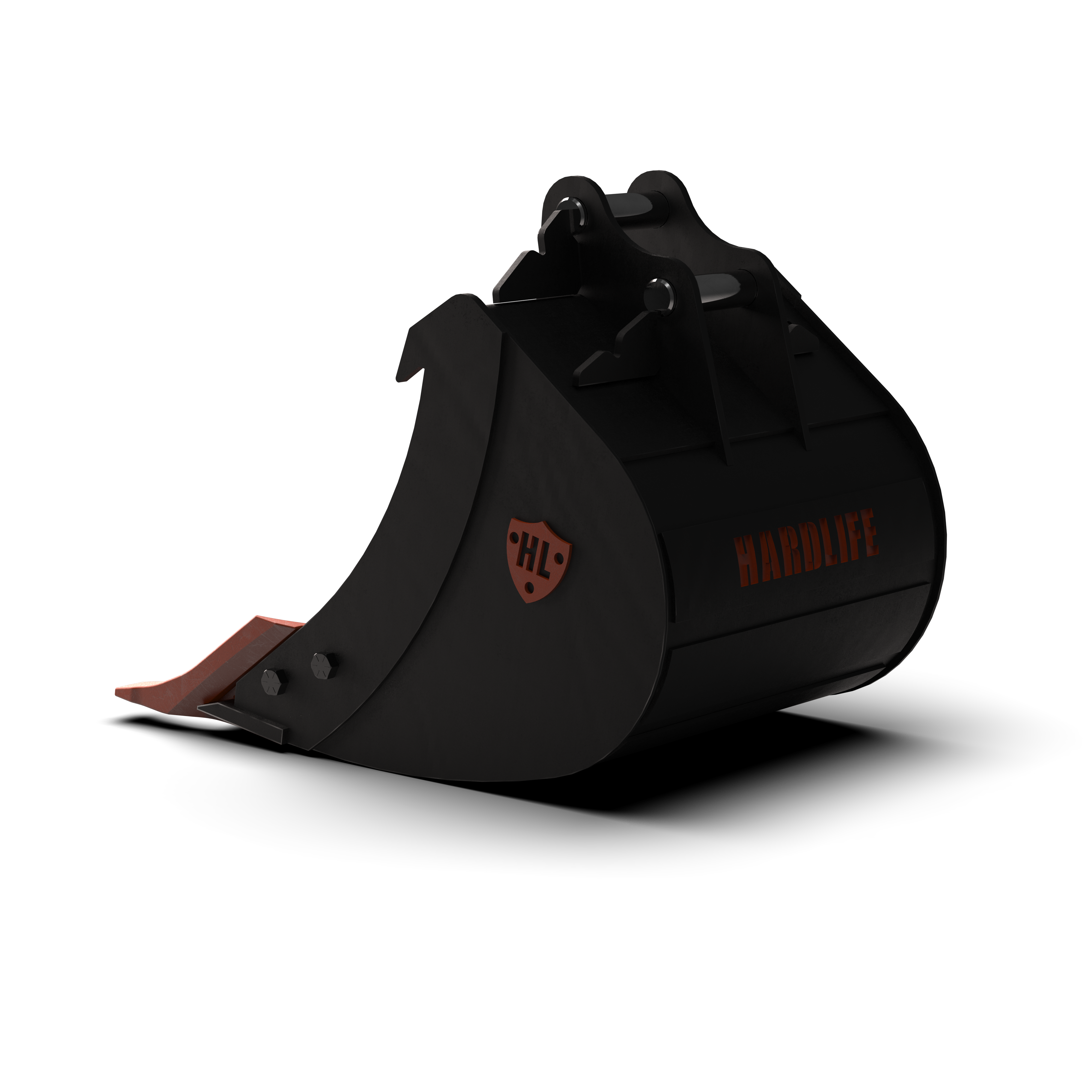

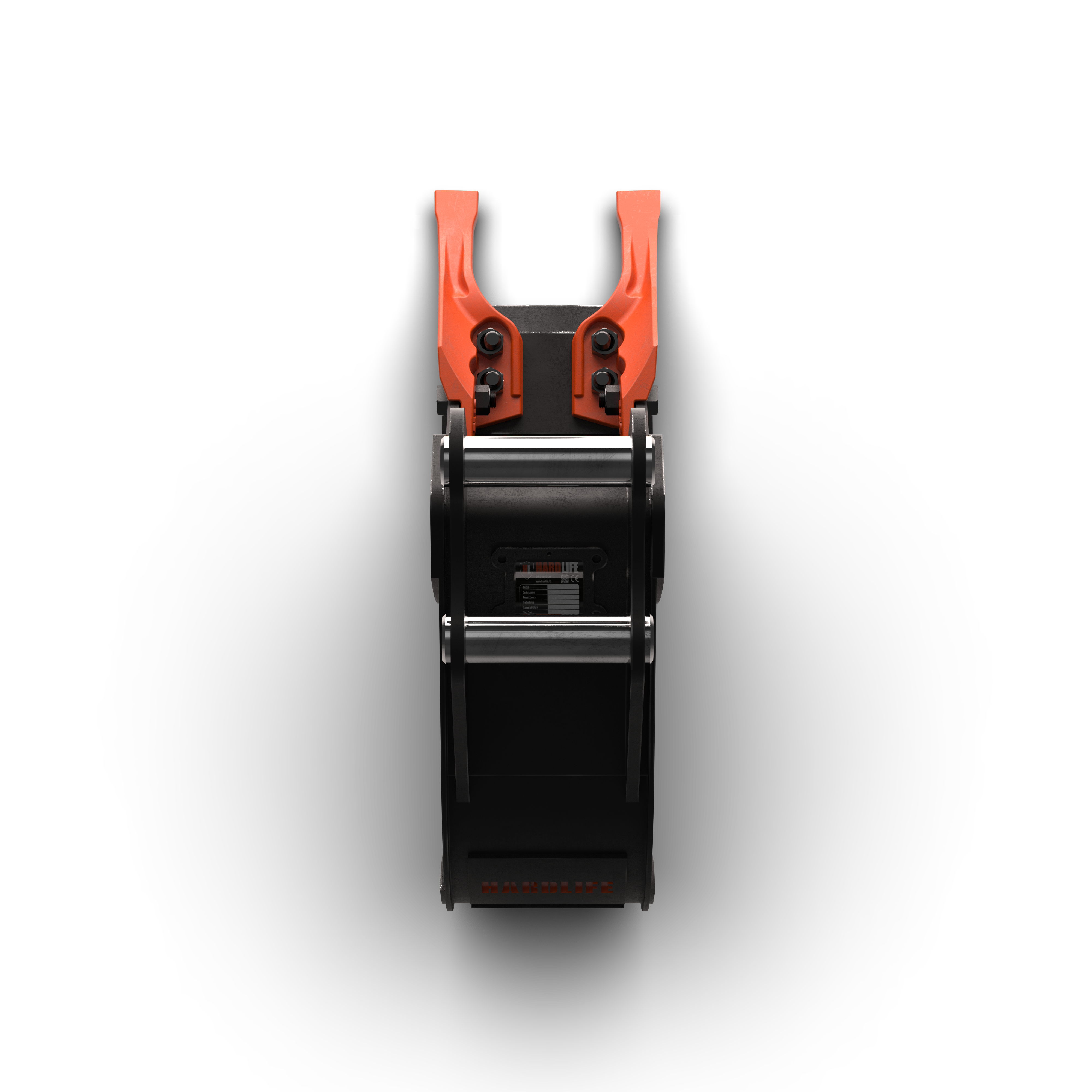

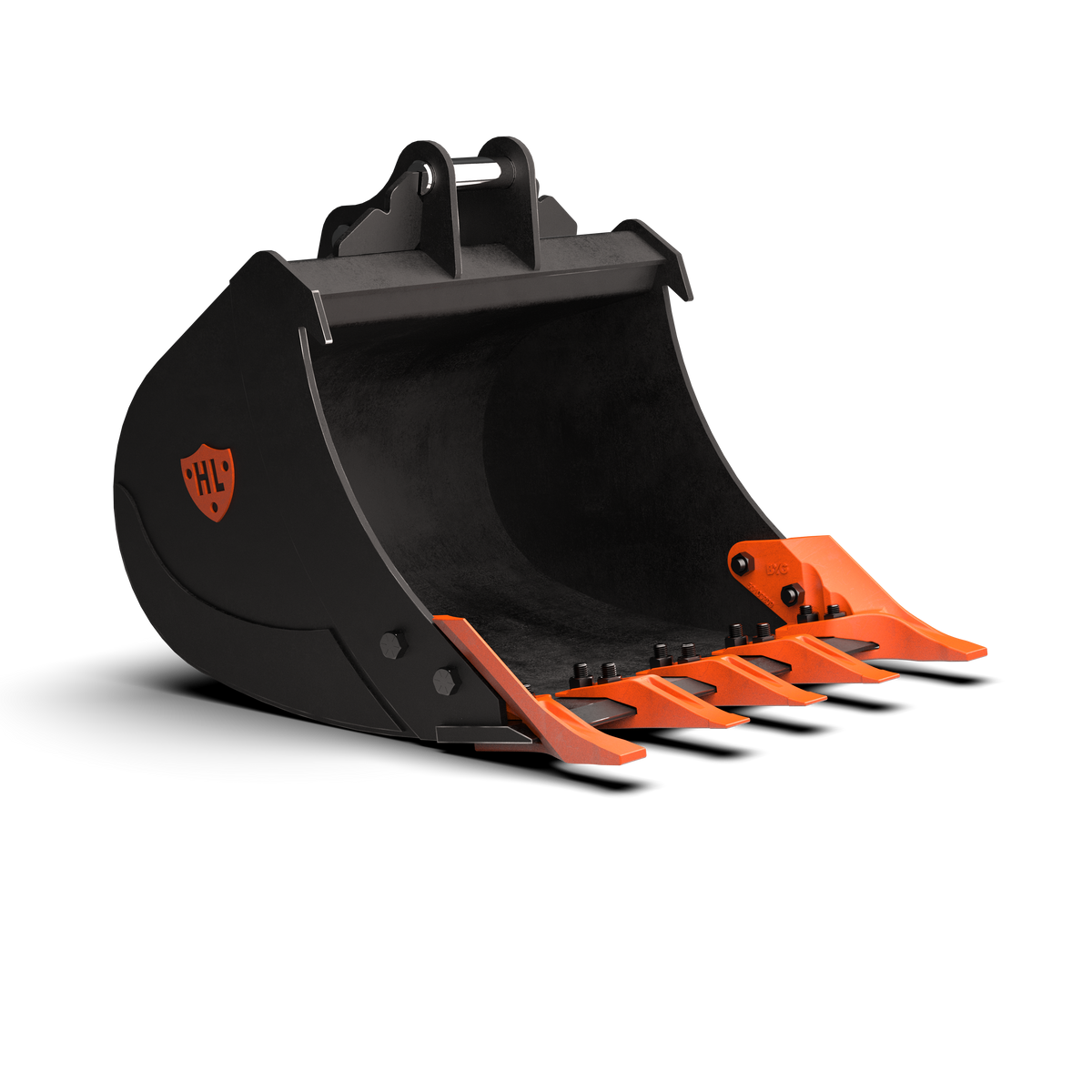

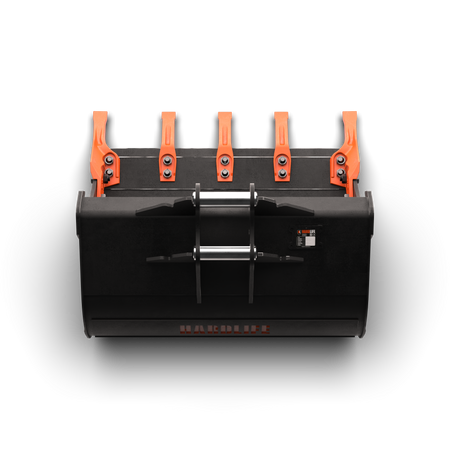

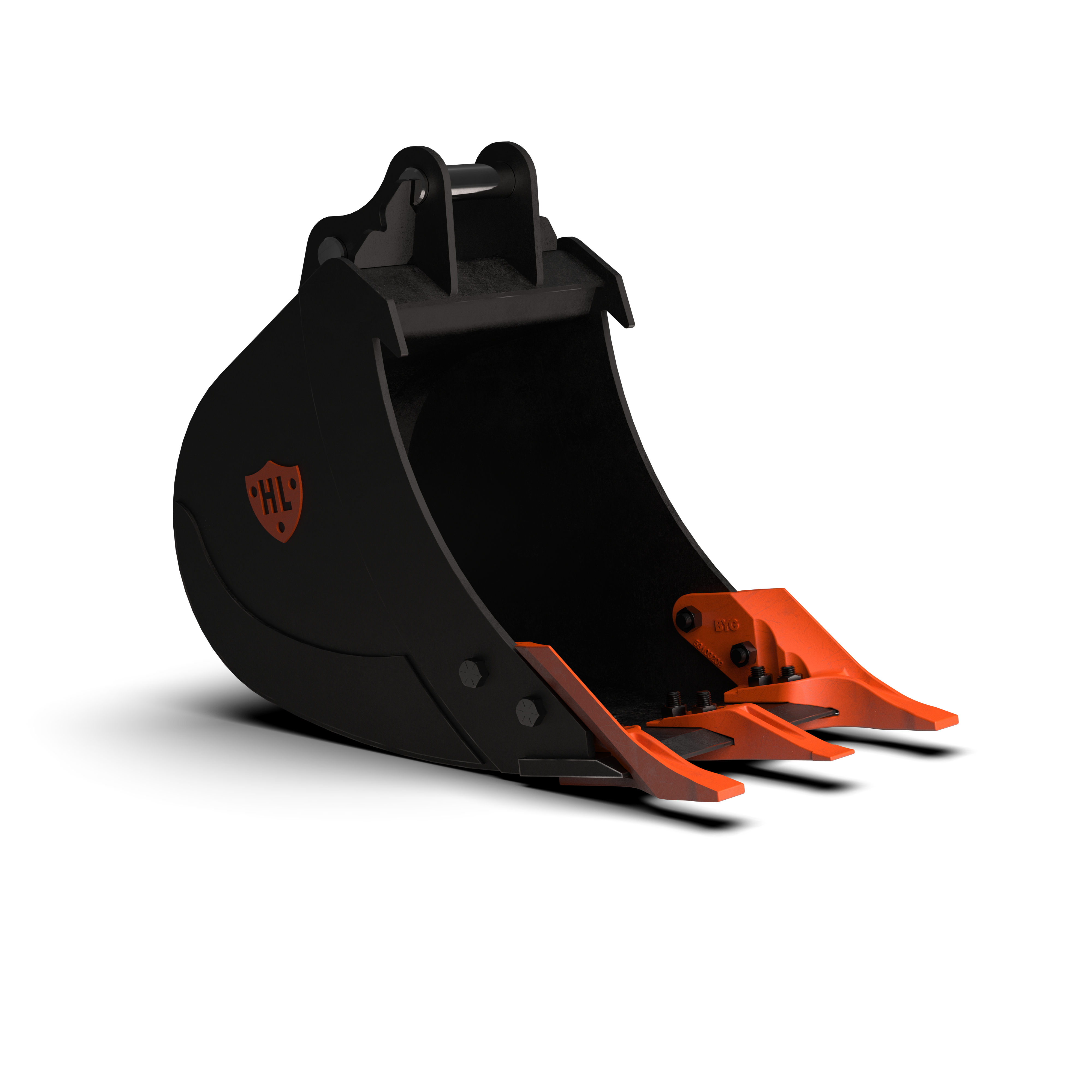

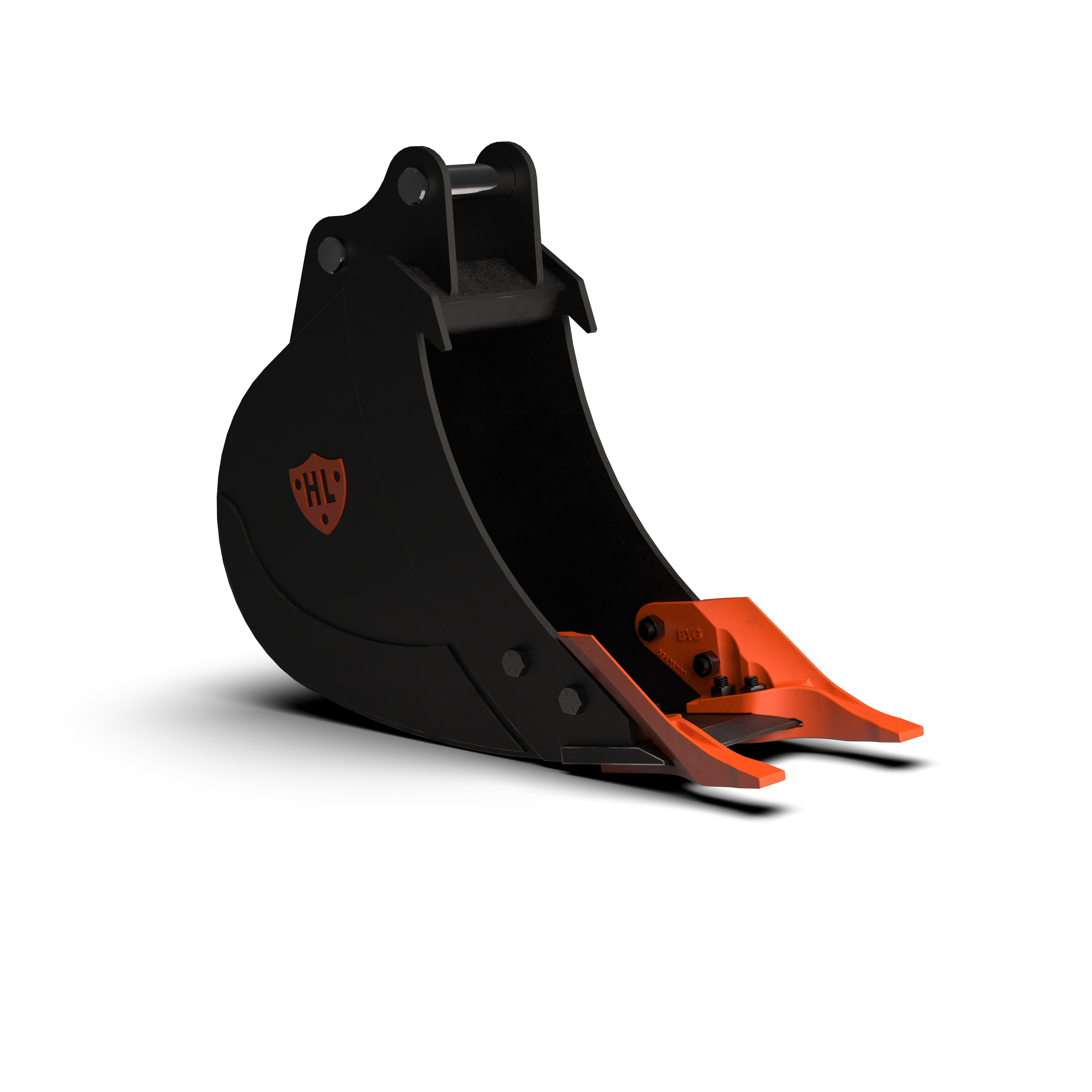

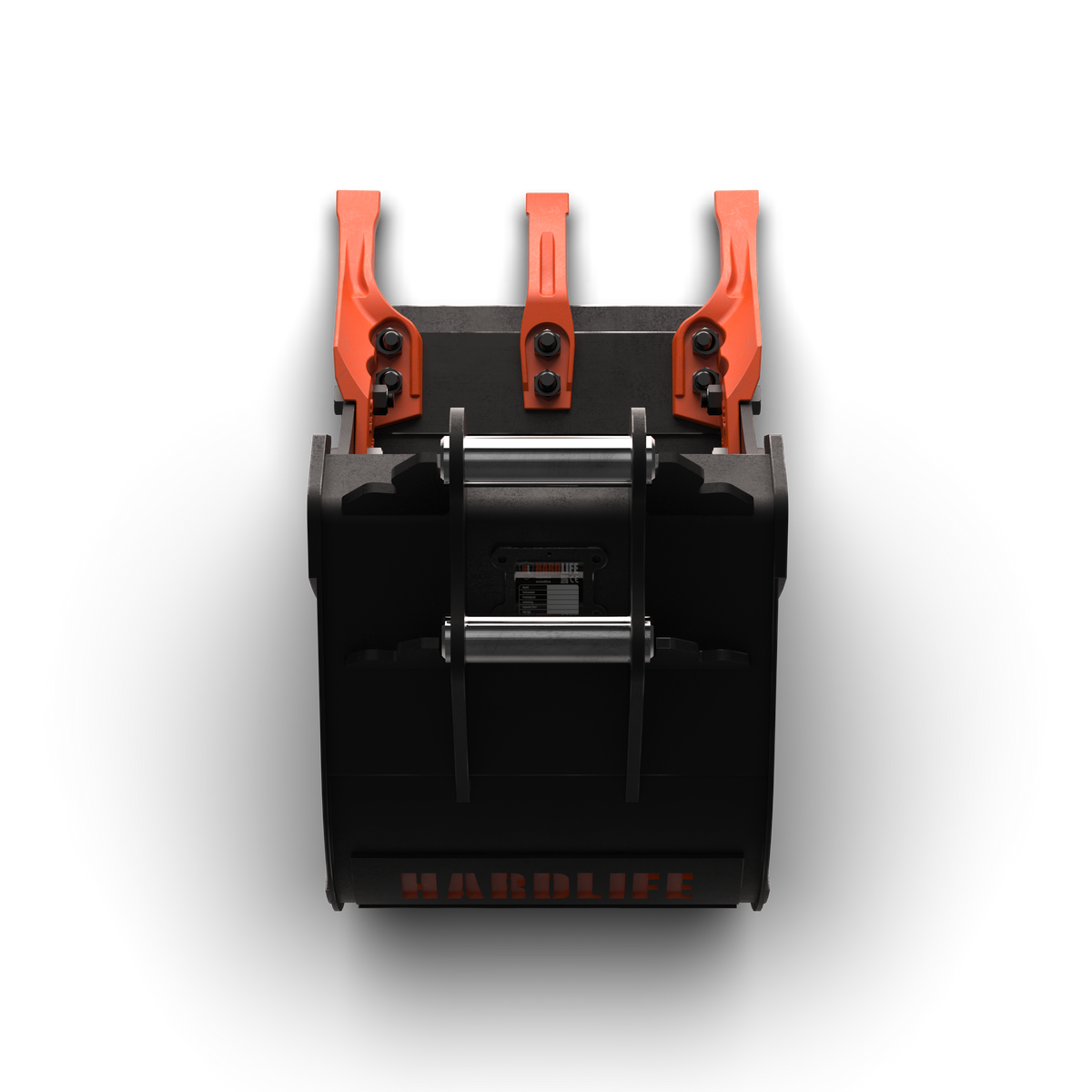

4-6 Tonne Excavator Digging Bucket

In stock
SKU: 040-UD-230
Price excluding VAT
£290.00
Width

Need Help?

Our friendly Support Team can be reached from 8 am to 6 pm (GMT), Monday through Friday to assist you with your order.

☏ 01525 851912

Despite an expanding range of attachments enabling excavators to become tool carriers, earthmoving is still the primary function for most operators, which means our digging buckets get a lot more use than most of our other attachments. That's why ours are built to last.

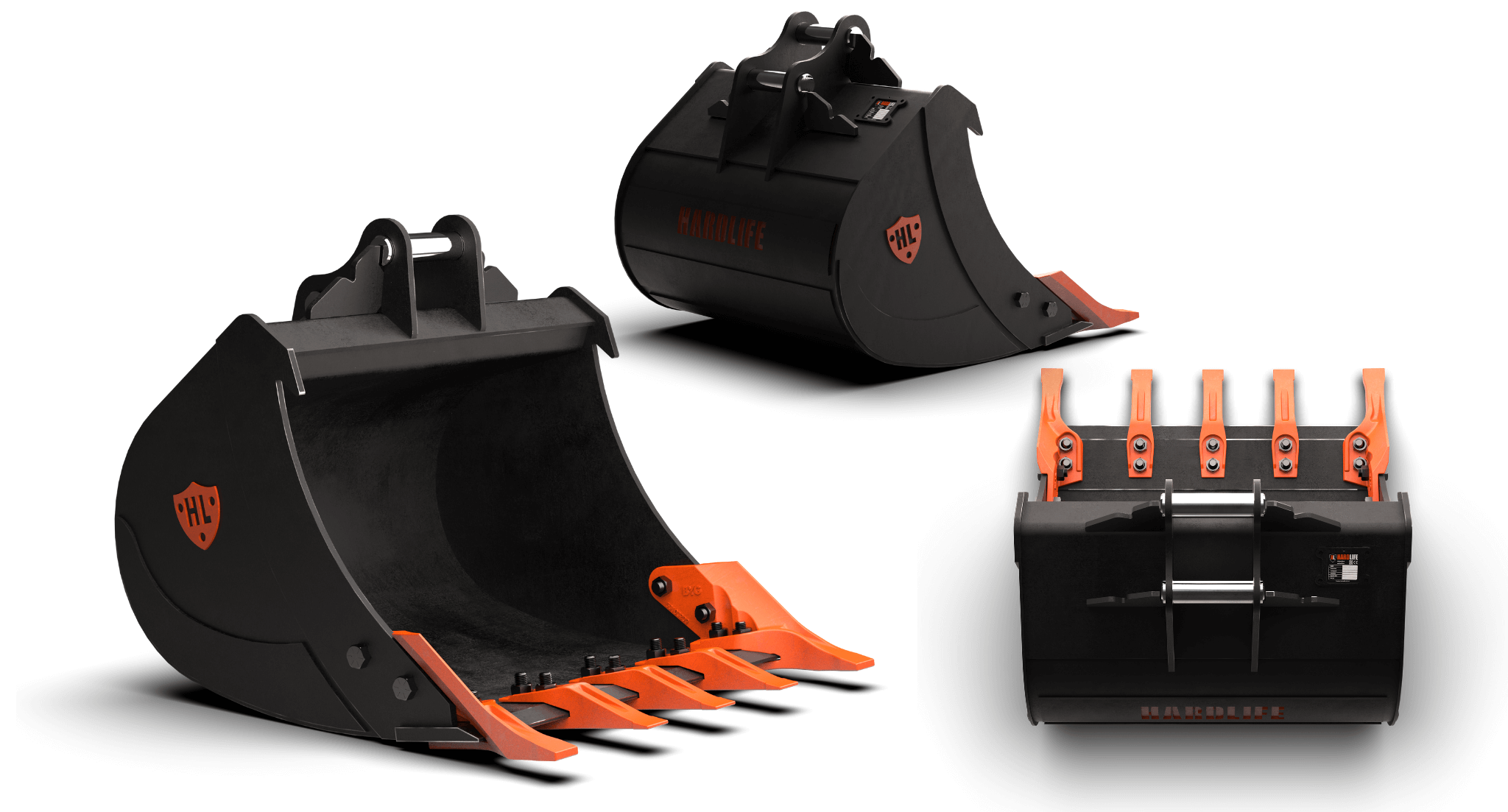

A necessity for every digger operator, we supply GP digging buckets in a range of different widths so whether it's digging trenches for cable or drainage, trenches for building footings, or just bulk earth moving, we have a solution for you.
Metric Imperial
150mm 230mm 300mm 450mm 600mm 750mm 900mm
Cutting Edge mm 20 x 150 20 x 150 20 x 150 20 x 150 20 x 150 20 x 150 20 x 150
Side to Side Edge Width mm 124 204 274 424 574 724 874
Side Cutter Thickness mm 12 12 12 12 12 12 12
Side Wall Thickness mm 5 5 5 5 5 5 5
Capacity (SAE) Lt 28 42 60 97 134 171 208
Weight kg 60 69 80 98 120 138 156

Additional Information

Description Ordering Information Delivery Information

Our digging buckets are general purpose buckets built for everyday use. From narrow trenching buckets to larger bulk buckets, all our digging buckets are fitted with an HB400 abrasion resistant (AR) cutting edge, thickened side edges and wear strips to protect and strengthen the bucket floor. Bolt-on teeth come as standard, whilst blades / bolt-on edges can also be fitted.

We're often asked for narrower buckets for laying fiber cable or water pipes, for example, as operators want to make narrow channels with minimal ground disturbance. For these purposes we'd suggest using our drain buckets, which are tapered from top to bottom, preventing  the quick coupler from hitting the ground and bottoming out the digging depth potential.

040-Digging Bucket Features

Double Radius Curve

Double-radius wrap design minimizes drag for smoother digging, faster cycles, and longer bucket life.

Wear Strips

All of our digging buckets come with wear strips stitched to the base of the bucket to increase longevity and improve the rigidity to the bucket. Stitch welds make them easy to cut off and replace should they ever wear out.

HB450 Abrasion Resistant Cutting Edge

Fitted as standard, an abrasion resistant cutting edge optimises bucket edge duration and minimises the risk of steel fractures!

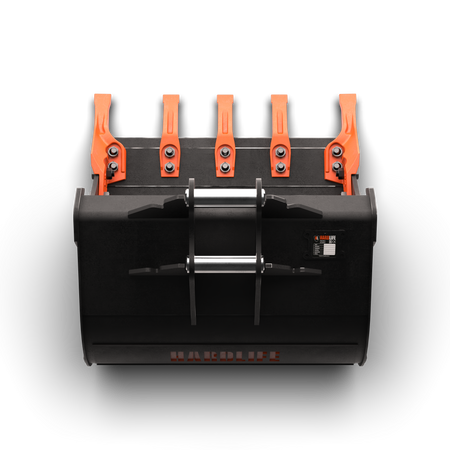

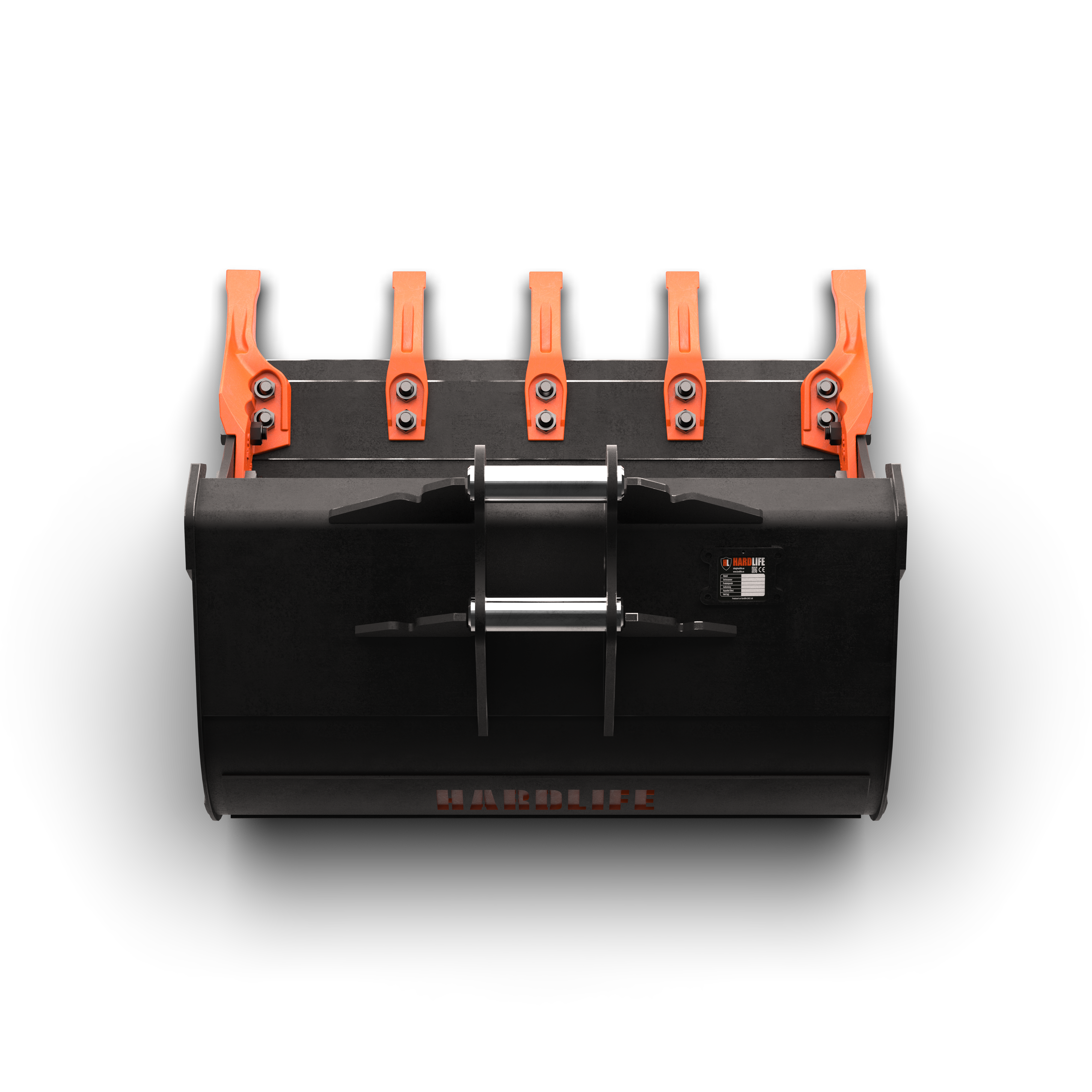

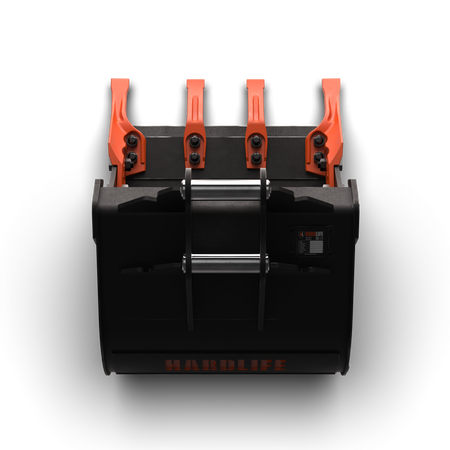

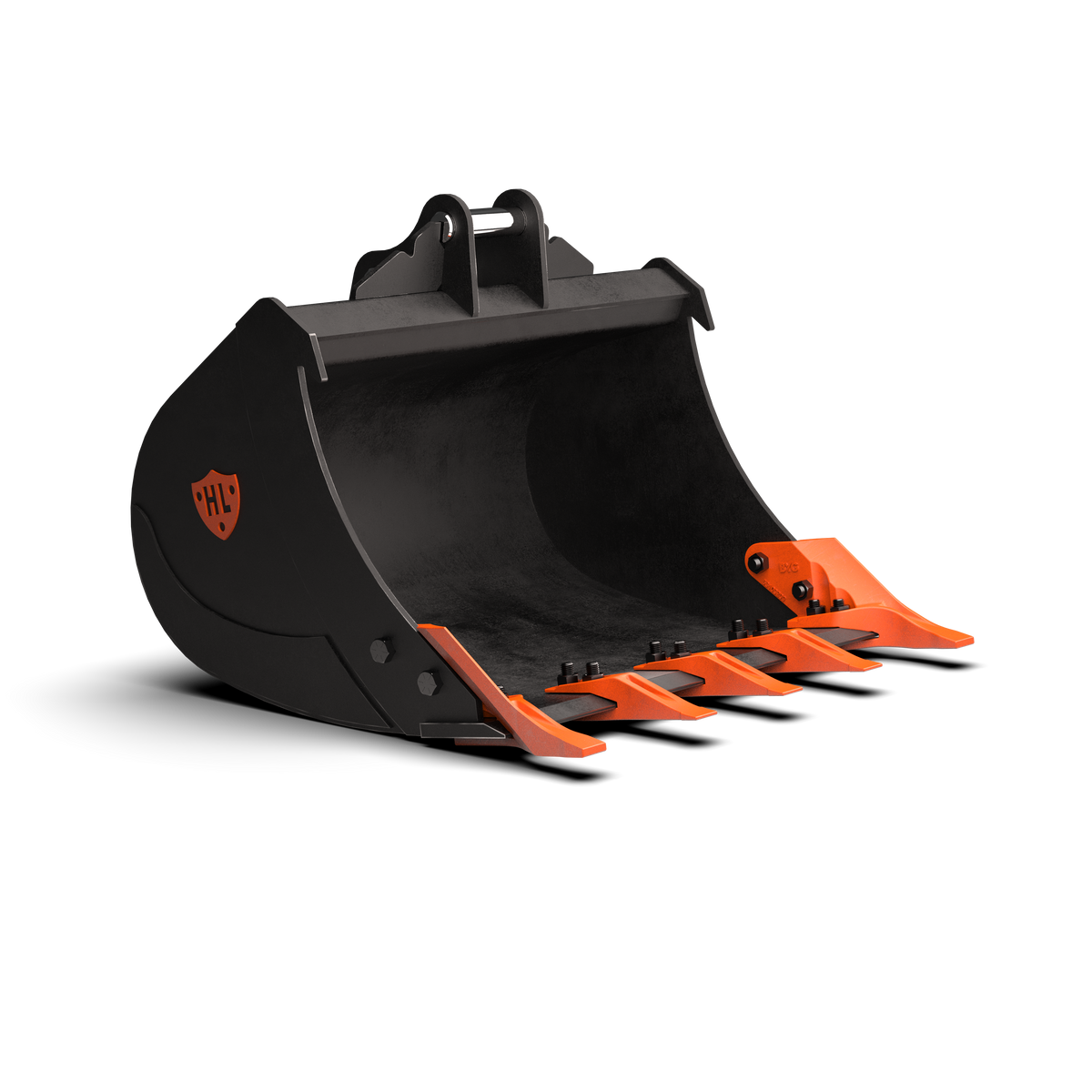

JCB Bolt on Teeth

JCB style bolt-on tooth systems. The side teeth extend upwards to provide wear protection to the side plate.

Different Linkages Available

Hardlife Digging Buckets are available with any linkage required to fit your excavator.

Integrated Corner Hooks

Makes moving multiple buckets quick and easy.
